09221326918 - HARTING

Description: DIN-Signal 2B032MR-3,0C1-2-V2 DIN 2B MALE ANGLED 32PIN PL2 T

Download 09221326918 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

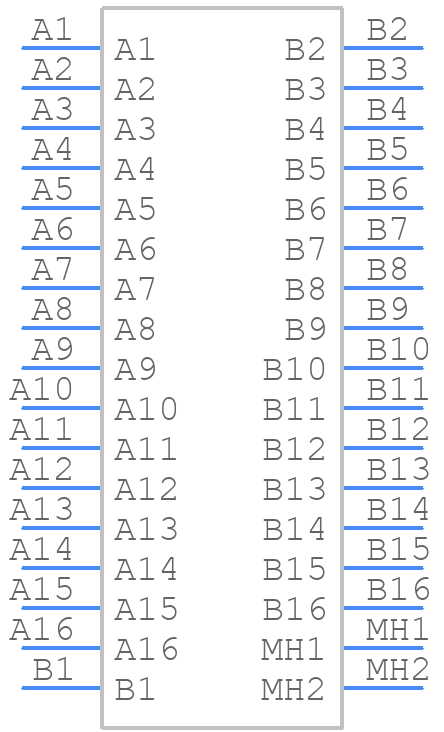

09221326918 - HARTING - PCB symbol
click to zoom
PCB Footprints

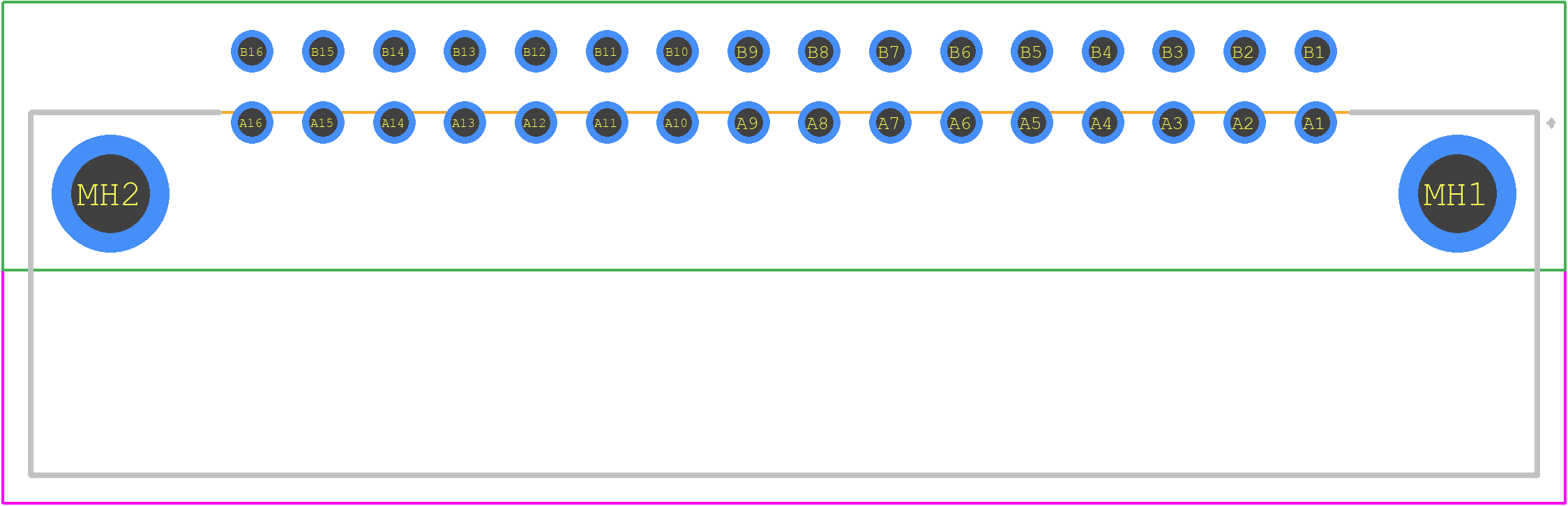

09221326918 - HARTING PCB footprint - Other - Other - 09221326918
click to zoom
3D Models
09221326918 - HARTING - 3D model - Other - 09221326918
click to zoom

09221326918 Details

  • Manufacturer Part Number:

    09221326918

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09221326918 Overview

Use the download button to access the 09221326918 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09221, or try a keyword search, such as Headers and Edge Type Connectors
