09222326421 - HARTING

Description: DIN 2B female straight 32pin, 13mm tails, PL2

Download 09222326421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

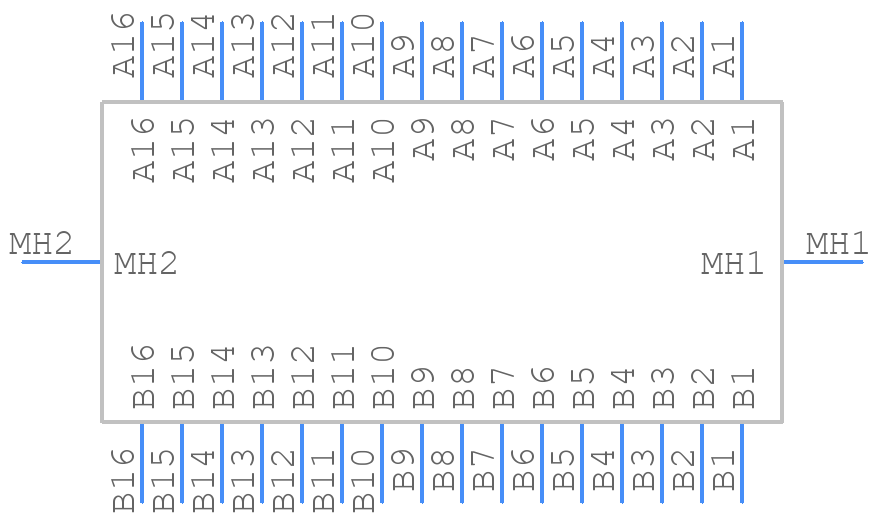

09222326421 - HARTING - PCB symbol
click to zoom
PCB Footprints

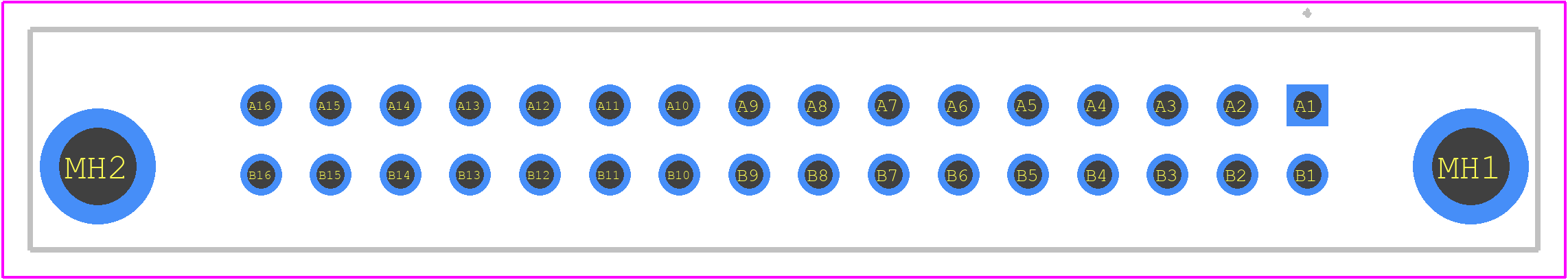

09222326421 - HARTING PCB footprint - Other - Other - 09222326421-1
click to zoom
3D Models
09222326421 - HARTING - 3D model - Other - 09222326421-1
click to zoom

09222326421 Details

  • Manufacturer Part Number:

    09222326421

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

09222326421 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09222326421 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per IEC 61373 Cat. 2.
  • Yes, the 09222326421 connector has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 09222326421 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 09222326421 connector has a high level of resistance to chemicals, including fuels, oils, and cleaning agents, but it's recommended to consult the HARTING chemical resistance chart for specific information.
