Part Image

09222326850 - HARTING

Description: DIN 2B female straight 32pin, press-in 4.5mm tails, PL2

Download 09222326850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

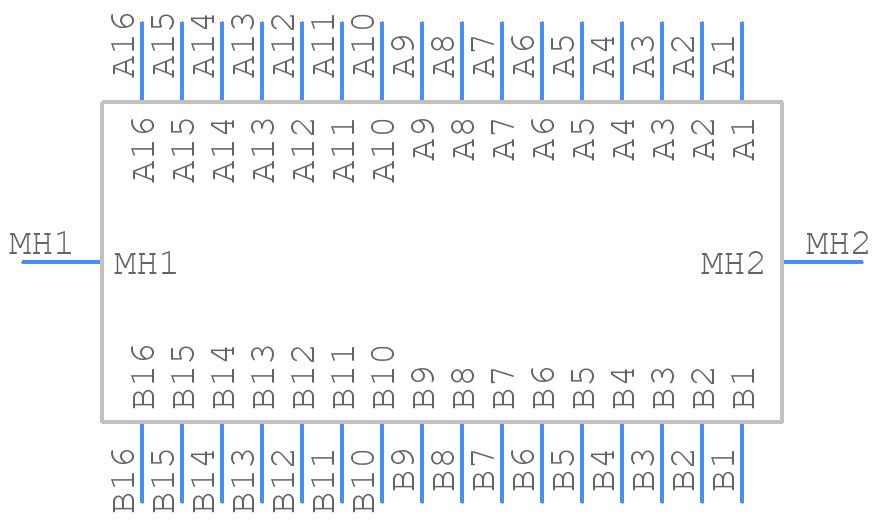

Symbol
09222326850 - HARTING - PCB symbol
click to zoom

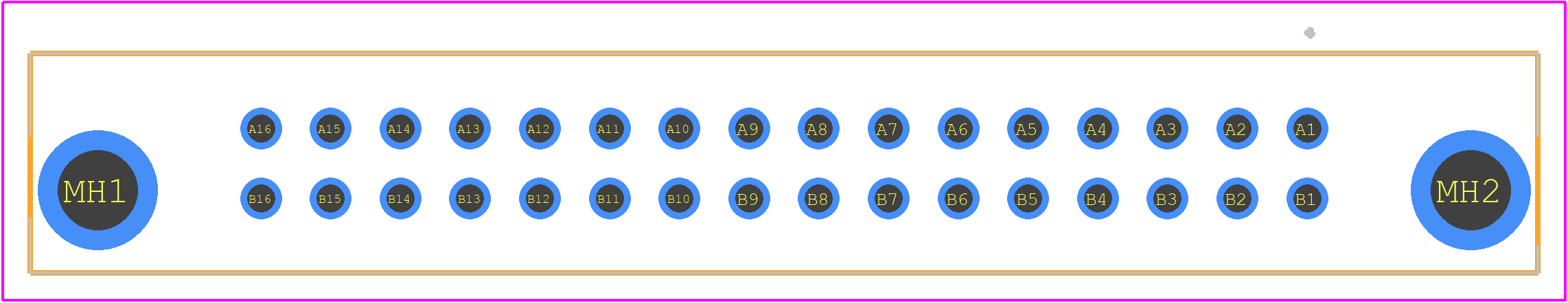

PCB Footprints
09222326850 - HARTING PCB footprint - Other - Other - 09222326850-2
click to zoom
3D Models
09222326850 - HARTING - 3D model - Other - 09222326850-2
click to zoom

09222326850 Details

  • Manufacturer Part Number:

    09222326850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09222326850 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
  • Yes, the 09222326850 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage. Consult HARTING's vibration and shock testing data for specific details.
  • The 09222326850 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure proper sealing and protection of the connector and cable assembly to maintain the IP rating.
  • The 09222326850 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, compatibility and performance cannot be guaranteed. It's recommended to use HARTING connectors for optimal performance and reliability.
  • The 09222326850 connector has an operating temperature range of -40°C to +125°C. However, the temperature range may vary depending on the specific application and environmental conditions. Consult HARTING's documentation or technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09222326850 Overview

Use the download button to access the 09222326850 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09222, or try a keyword search, such as Headers and Edge Type Connectors
