09224326825 - HARTING

Description: DIN 2B female straight 32pin, w/ board locks, 4.5mm tails, PL2

Download 09224326825 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

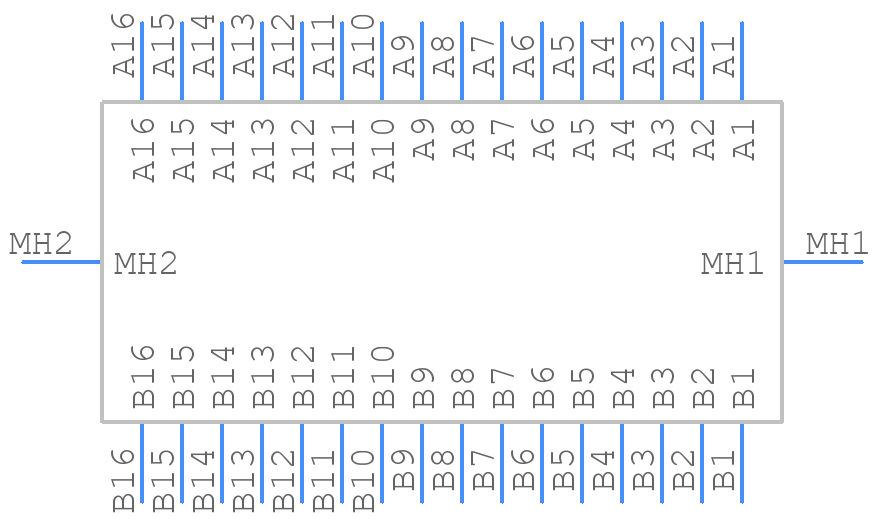

Symbol
09224326825 - HARTING - PCB symbol
click to zoom

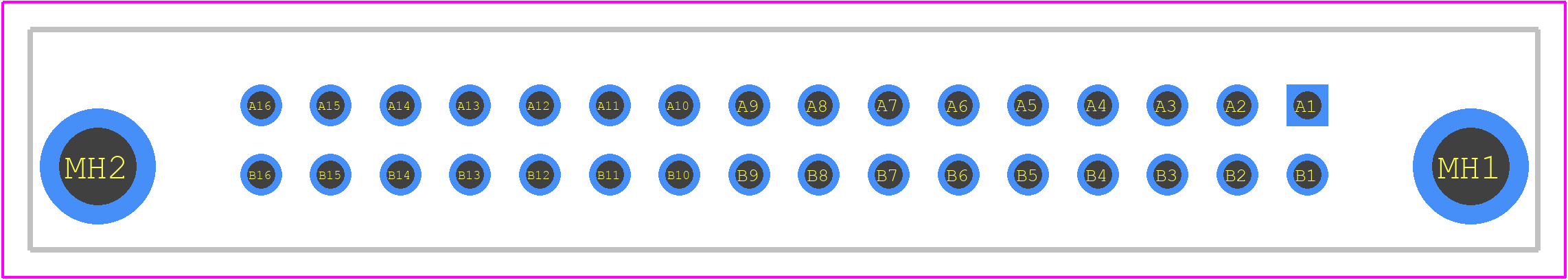

PCB Footprints
09224326825 - HARTING PCB footprint - Other - Other - 09224326825-4
click to zoom
3D Models
09224326825 - HARTING - 3D model - Other - 09224326825-4
click to zoom

09224326825 Details

  • Manufacturer Part Number:

    09224326825

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09224326825 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
  • Yes, the 09224326825 connector is part of the HARTING Han series and is compatible with other Han series connectors, but compatibility should be verified with HARTING or a qualified distributor.
  • The operating temperature range for the 09224326825 connector is -40°C to 125°C, as specified in the datasheet.
  • Yes, the connector is designed to meet IP67 and IP69K standards, making it suitable for use in harsh environments, but the specific environment should be evaluated to ensure compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09224326825 Overview

Use the download button to access the 09224326825 schematic symbol, PCB footprint, and 3D model.
