The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.
Yes, the 09231322921 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, transportation, and industrial control systems.
The 09231322921 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and installed to maintain its environmental rating. Additionally, the connector's materials and coatings are designed to withstand outdoor environments, but it's recommended to follow the manufacturer's guidelines for outdoor use.
The 09231322921 connector is designed to be compatible with other HARTING connectors and mating connectors that meet the same industry standards. However, it's recommended to verify compatibility with other manufacturers' mating connectors before use to ensure reliable connections and prevent damage to the connector.
The 09231322921 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications. However, it's essential to consider the temperature rating of the wires and cables used with the connector to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09231322921 Overview

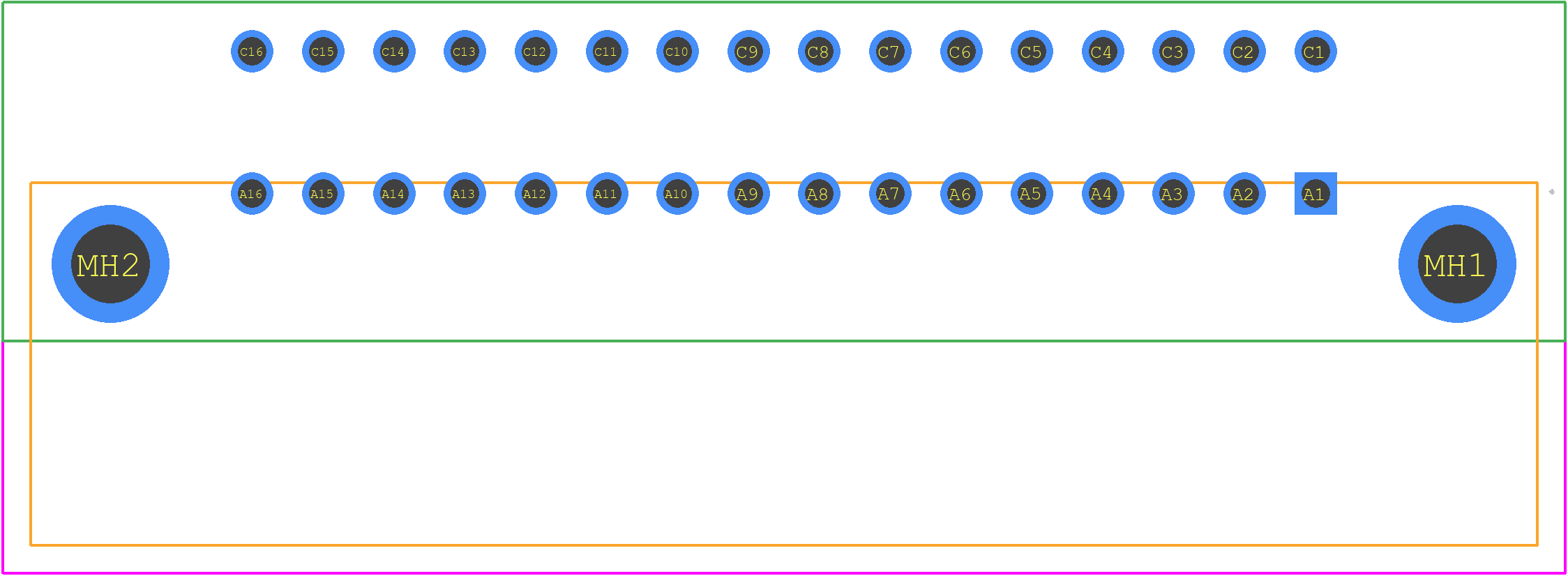

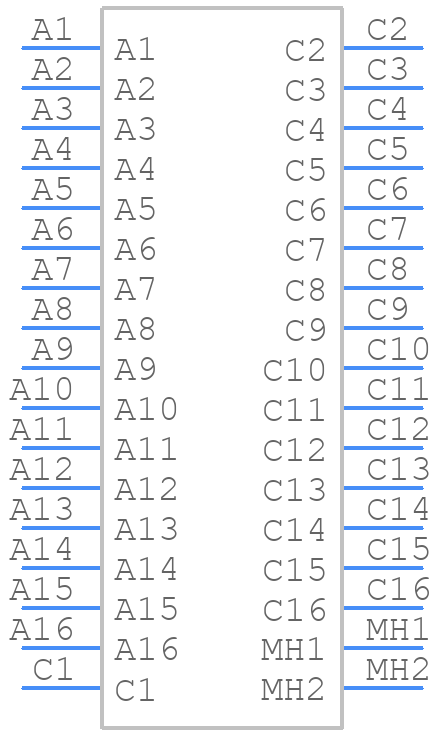

Use the download button to access the 09231322921 schematic symbol, PCB footprint, and 3D model.
