09231486921222 - HARTING

Description: DIN 2C male angled, 48pin, PL2, NFF F1-I2

Download 09231486921222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09231486921222 - HARTING - PCB symbol
click to zoom
PCB Footprints

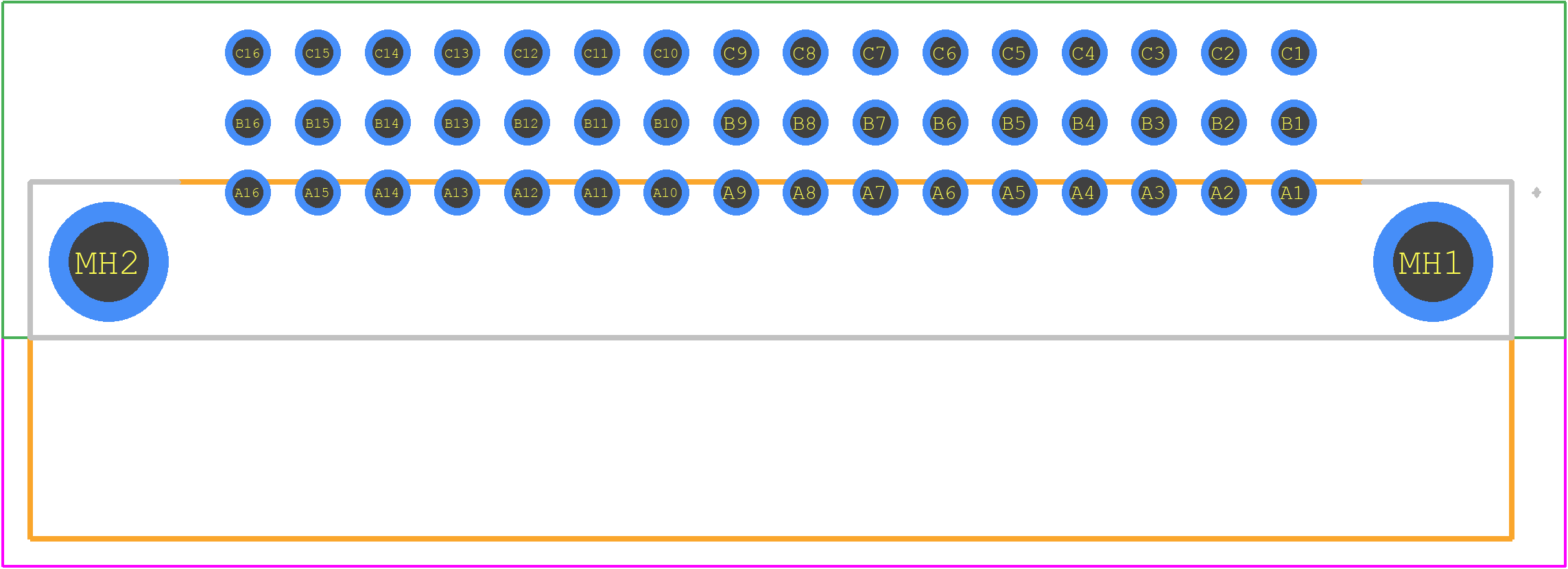

09231486921222 - HARTING PCB footprint - Other - Other - 09231486921222-2
click to zoom
3D Models
09231486921222 - HARTING - 3D model - Other - 09231486921222-2
click to zoom

09231486921222 Details

  • Manufacturer Part Number:

    09231486921222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09231486921222 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09231486921222 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2.
  • Yes, the connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The mating cycle life of the 09231486921222 connector is rated for a minimum of 500 mating cycles, depending on the specific application and usage.
  • Yes, the 09231486921222 connector is designed to be compatible with other HARTING connectors and accessories, allowing for flexible and modular system design.
