09232482825 - HARTING

Description: DIN 2C female straight 48pin, 4.5mm tails, PL1

Download 09232482825 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09232482825 - HARTING - PCB symbol
click to zoom
PCB Footprints

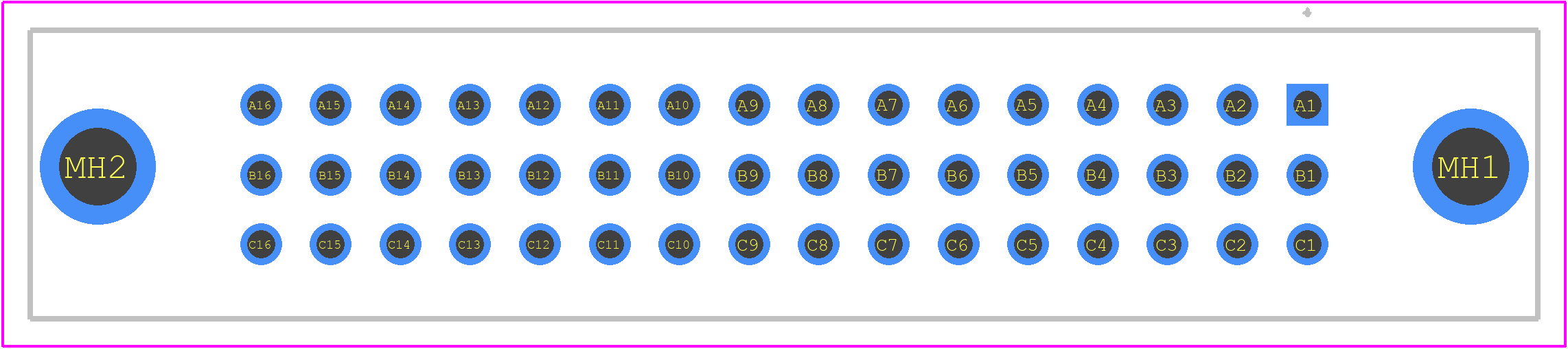

09232482825 - HARTING PCB footprint - Other - Other - 09234486825-1
click to zoom
3D Models
09232482825 - HARTING - 3D model - Other - 09234486825-1
click to zoom

09232482825 Details

  • Manufacturer Part Number:

    09232482825

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

09232482825 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09232482825 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09232482825 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 09232482825 connector is designed to operate in a wide temperature range (-40°C to +125°C) and can withstand humid environments (up to 95% RH). However, it's essential to consult the datasheet and HARTING's technical support for specific environmental requirements and any necessary derating.
  • The 09232482825 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult with HARTING's technical support for specific guidance on mating cycle life and maintenance requirements.
  • The 09232482825 connector is designed to be compatible with other HARTING connectors and products within the same series. However, compatibility with third-party products should be verified through testing and consultation with HARTING's technical support.
