The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.
Yes, the 09232486421 connector is designed to withstand high-vibration environments. HARTING's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow the recommended mounting and installation procedures to ensure the connector's performance in high-vibration applications.
The 09232486421 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow the recommended installation and sealing procedures to ensure the connector's performance in outdoor environments. Additionally, the connector's materials and coatings should be suitable for the specific outdoor environment and application.
The 09232486421 connector is designed to meet the IEC 61076-2-101 standard, which ensures compatibility with other manufacturers' mating connectors that meet the same standard. However, it's essential to verify the compatibility of the mating connector's dimensions, materials, and performance characteristics before use.
The 09232486421 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications. However, it's essential to consider the temperature range of the specific application and ensure that the connector's materials and performance characteristics meet the requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09232486421 Overview

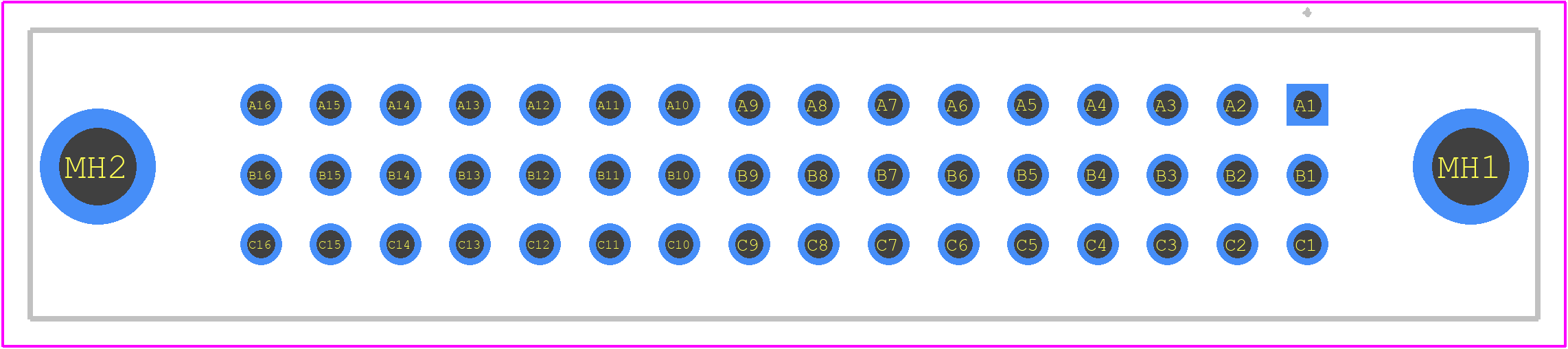

Use the download button to access the 09232486421 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09232,
or try a keyword search, such as Headers and Edge Type Connectors
