Technical Content
Part Image

09232486821 - HARTING

Description: DIN 2C female straight 48pin, 13mm tails for wire wrap, PL2

Download 09232486821 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09232486821 - HARTING - PCB symbol
click to zoom

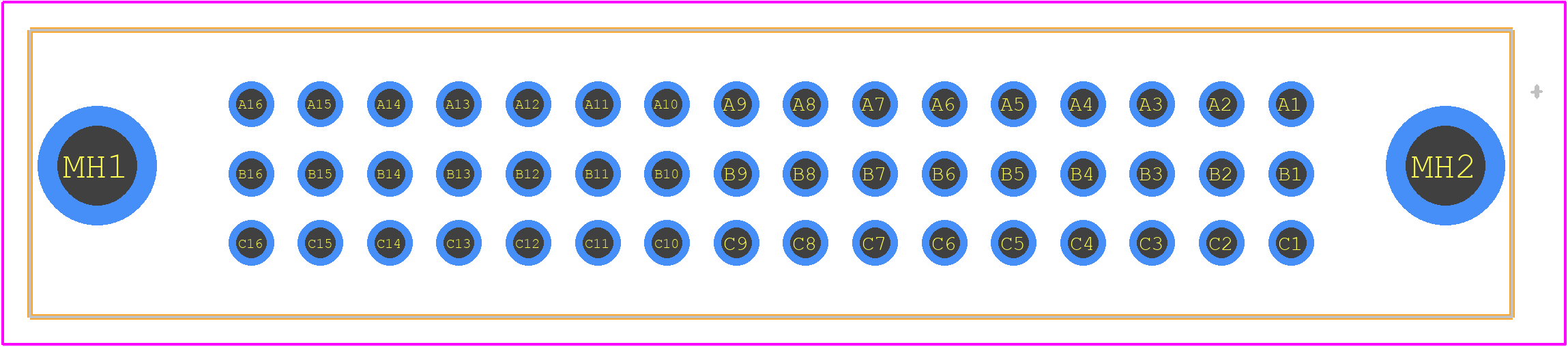

PCB Footprints
09232486821 - HARTING PCB footprint - Other - Other - 09232486821-1
click to zoom
3D Models
09232486821 - HARTING - 3D model - Other - 09232486821-1
click to zoom

09232486821 Details

  • Manufacturer Part Number:

    09232486821

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Finland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7.7

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    WIRE WRAP

  • Total Number of Contacts:

    48

09232486821 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09232486821 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09232486821 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 09232486821 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's recommended to consult with HARTING's technical support for specific application guidance and potential derating requirements.
  • The 09232486821 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09232486821 connector is designed to be compatible with other HARTING connectors within the same product family. However, compatibility with third-party connectors should be verified through testing and consultation with HARTING's technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09232486821 Overview

Use the download button to access the 09232486821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09232, or try a keyword search, such as Headers and Edge Type Connectors
