Technical Content
Part Image

09232486841 - HARTING

Description: DIN 2C female straight 48pin, 2.9mm tails, PL2, THR/SMC

Download 09232486841 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09232486841 - HARTING - PCB symbol
click to zoom

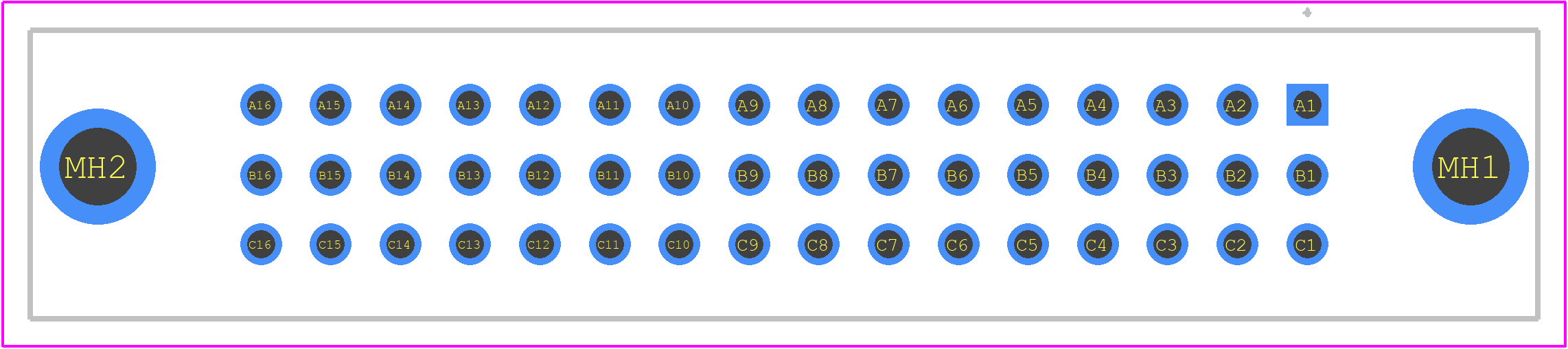

PCB Footprints
09232486841 - HARTING PCB footprint - Other - Other - 09232486841-1
click to zoom
3D Models
09232486841 - HARTING - 3D model - Other - 09232486841-1
click to zoom

09232486841 Details

  • Manufacturer Part Number:

    09232486841

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09232486841 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • The 09232486841 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
  • The operating temperature range for the 09232486841 connector is -40°C to 125°C, as specified in the datasheet.
  • Yes, the connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals, but it's recommended to consult the HARTING environmental testing reports for specific details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09232486841 Overview

Use the download button to access the 09232486841 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09232, or try a keyword search, such as Headers and Edge Type Connectors
