09232486850222 - HARTING

Description: DIN 2C female straight 48pin, press-in 4.5mm tails, PL2, NFF F1-I2

Download 09232486850222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09232486850222 - HARTING - PCB symbol
click to zoom
PCB Footprints

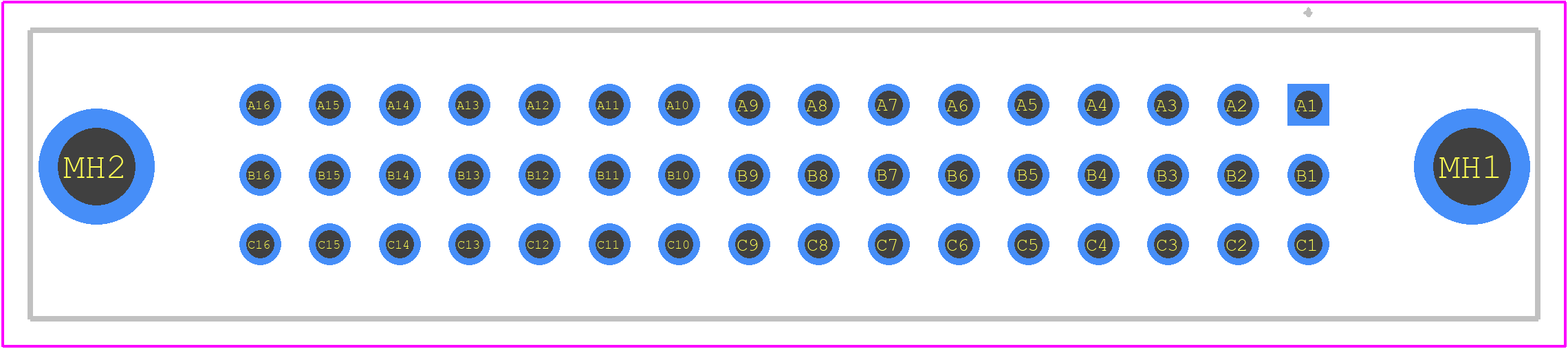

09232486850222 - HARTING PCB footprint - Other - Other - 09232486850222-1
click to zoom

09232486850222 Details

  • Manufacturer Part Number:

    09232486850222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09232486850222 Overview

Use the download button to access the 09232486850222 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 09232, or try a keyword search, such as Headers and Edge Type Connectors
