Technical Content
Part Image

09233487921 - HARTING

Description: DIN 2C male angled, 48pin, w/ board locks, PL3

Download 09233487921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09233487921 - HARTING - PCB symbol
click to zoom

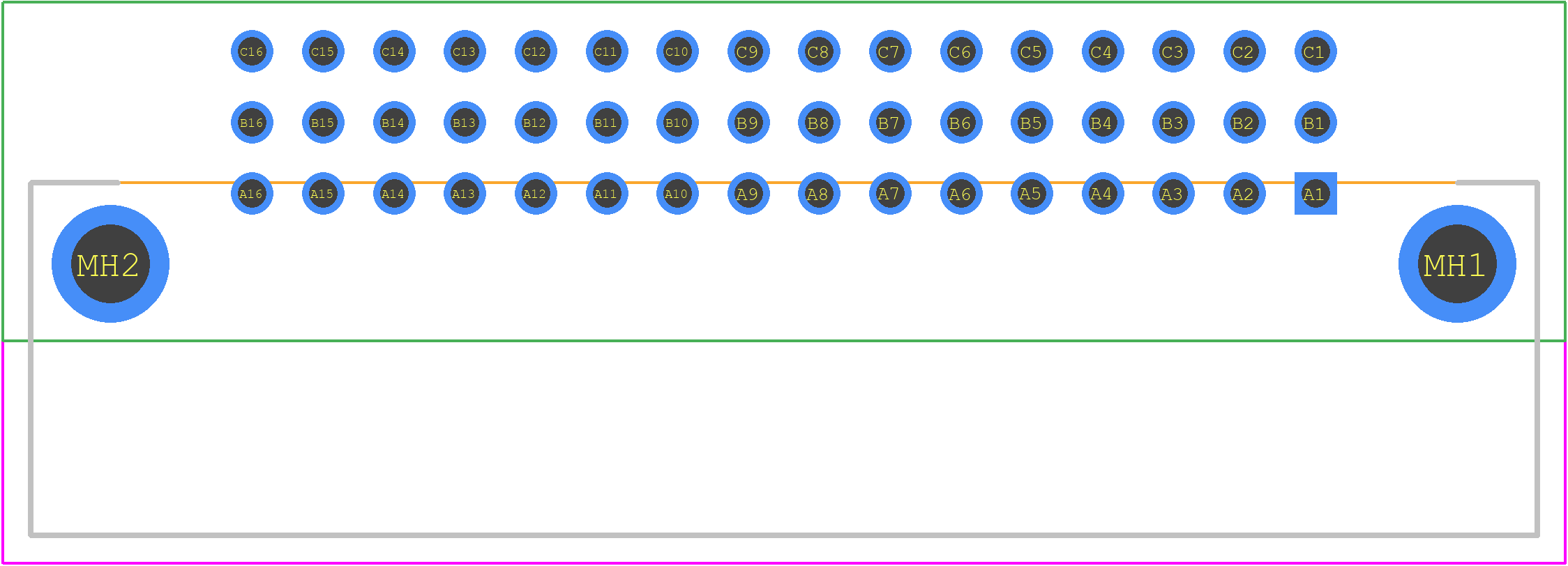

PCB Footprints
09233487921 - HARTING PCB footprint - Other - Other - 09233487921-3
click to zoom
3D Models
09233487921 - HARTING - 3D model - Other - 09233487921-3
click to zoom

09233487921 Details

  • Manufacturer Part Number:

    09233487921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09233487921 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09233487921 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09233487921 connector has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 09233487921 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 09233487921 connector has a robust design and materials that can withstand exposure to harsh chemicals, including fuels, oils, and cleaning agents. However, it's recommended to consult the HARTING chemical resistance chart for specific compatibility information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09233487921 Overview

Use the download button to access the 09233487921 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09233, or try a keyword search, such as Headers and Edge Type Connectors
