09234326824 - HARTING

Description: DIN 2C female straight 32pin, w/ board locks, 2.9mm tails, PL2 (rows a,c loaded)

Download 09234326824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

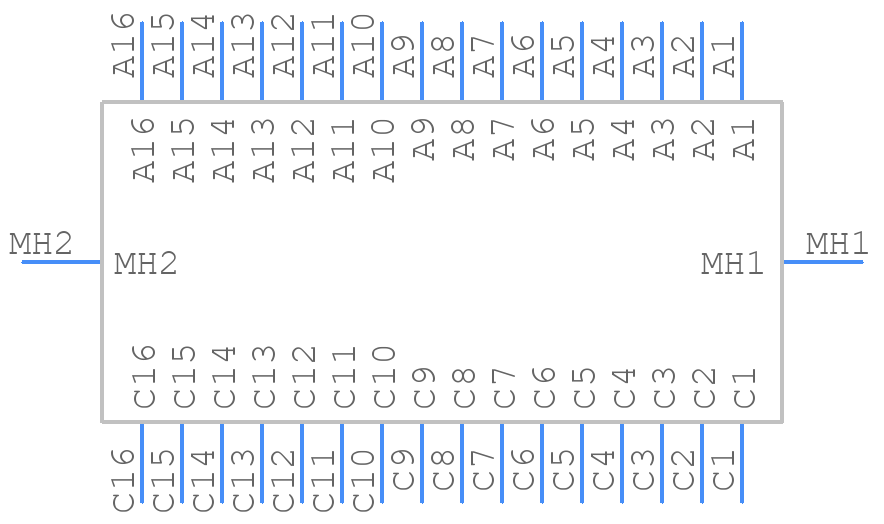

09234326824 - HARTING - PCB symbol
click to zoom
PCB Footprints

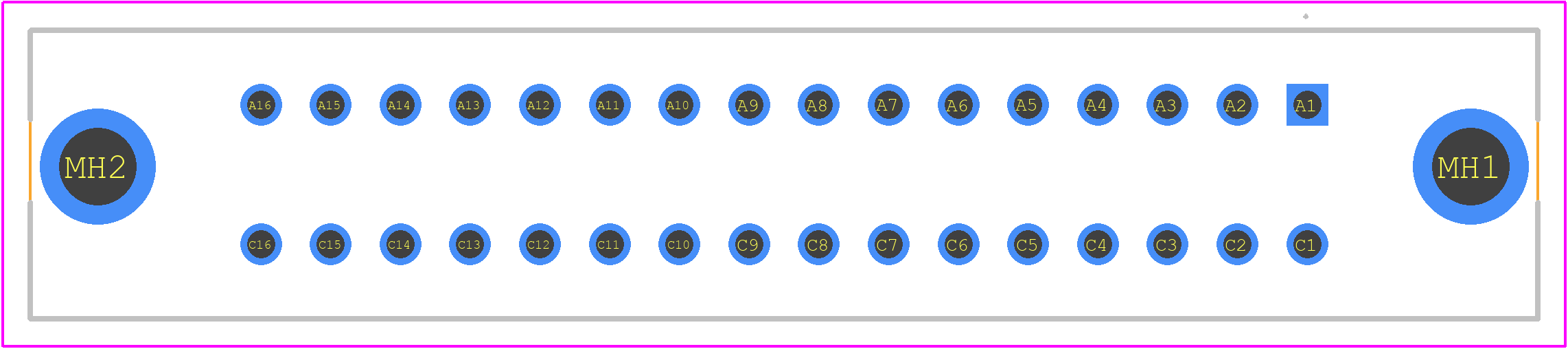

09234326824 - HARTING PCB footprint - Other - Other - 09234326824-2
click to zoom
3D Models
09234326824 - HARTING - 3D model - Other - 09234326824-2
click to zoom

09234326824 Details

  • Manufacturer Part Number:

    09234326824

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09234326824 Overview

Use the download button to access the 09234326824 schematic symbol, PCB footprint, and 3D model.
