09234486825 - HARTING

Description: DIN 2C female straight 48pin, w/ board locks, 4.5mm tails, PL2

Download 09234486825 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09234486825 - HARTING - PCB symbol
click to zoom

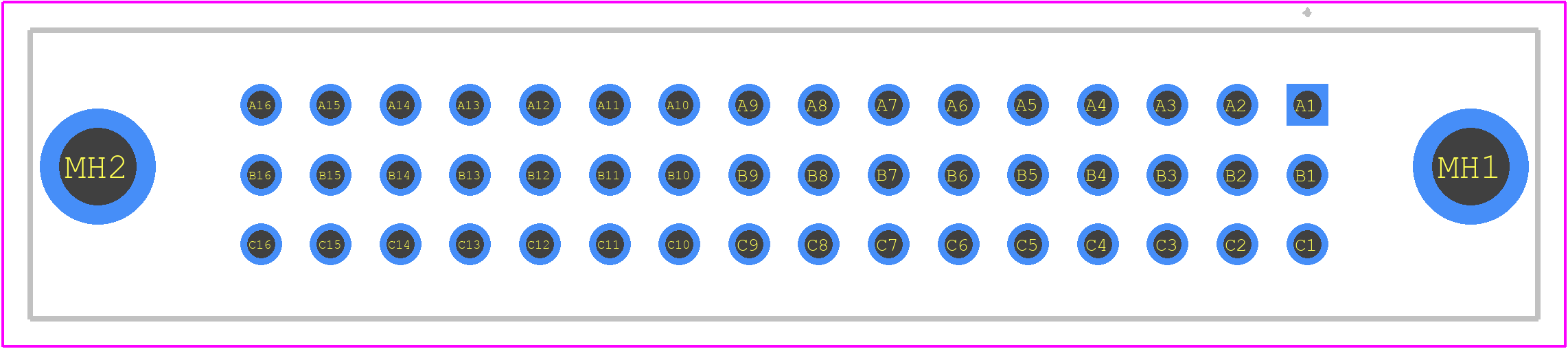

PCB Footprints
09234486825 - HARTING PCB footprint - Other - Other - 09234486825-1
click to zoom
3D Models
09234486825 - HARTING - 3D model - Other - 09234486825-1
click to zoom

09234486825 Details

  • Manufacturer Part Number:

    09234486825

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09234486825 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 09234486825 connector is part of the HARTING Han series and is compatible with other Han series connectors, but compatibility should be verified with HARTING or a qualified distributor.
  • The operating temperature range for the 09234486825 connector is -40°C to 125°C, as specified in the datasheet.
  • The connector has a IP67 rating, which provides protection against dust and water ingress, but it's not recommended for exposure to harsh chemicals or saltwater without proper sealing and protection.
