The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
The 09241206919 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
The maximum operating temperature range for the 09241206919 connector is -40°C to 125°C, as specified in the datasheet.
Yes, the connector is designed to meet the IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09241206919 Overview

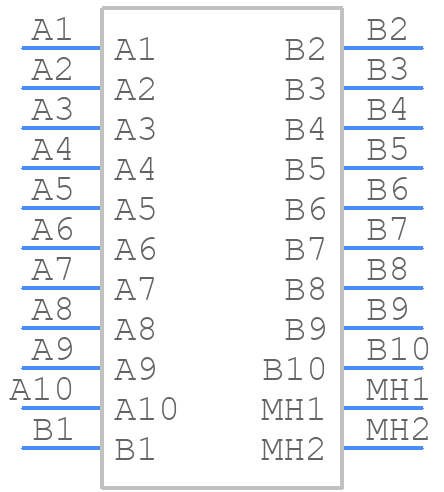

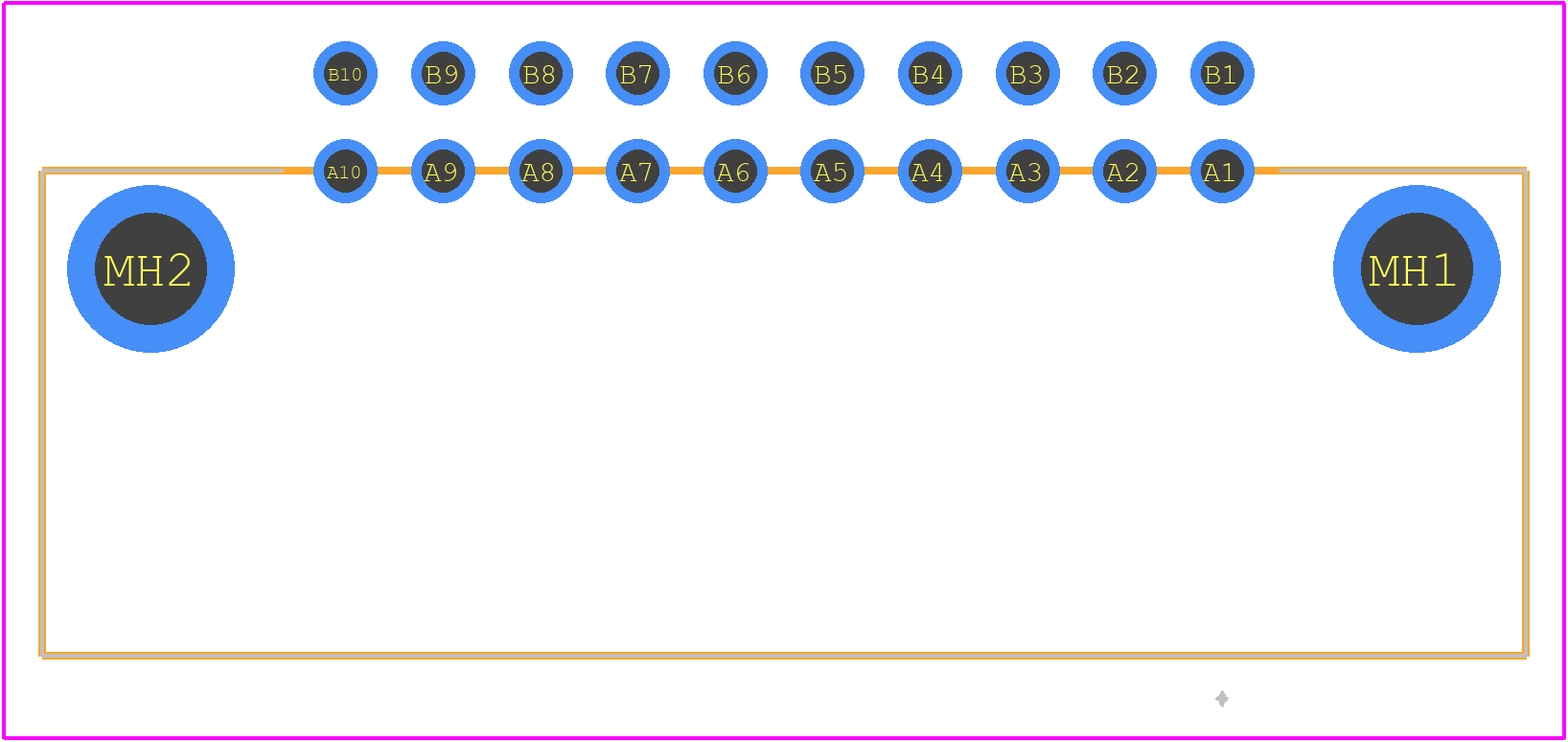

Use the download button to access the 09241206919 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09241,
or try a keyword search, such as Headers and Edge Type Connectors
