09242206414 - HARTING

Description: DIN 3B female straight 20pin, 2.9mm tails, PL2, w/o fixing flange, THR/SMC

Download 09242206414 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

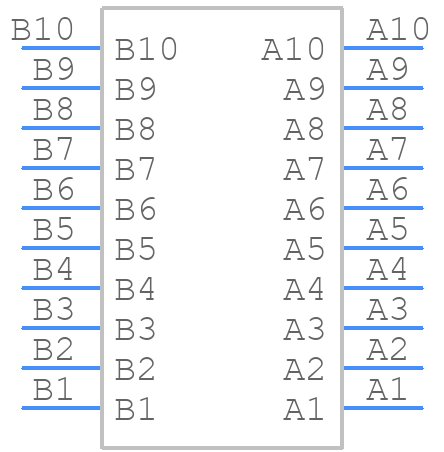

Symbol
09242206414 - HARTING - PCB symbol
click to zoom

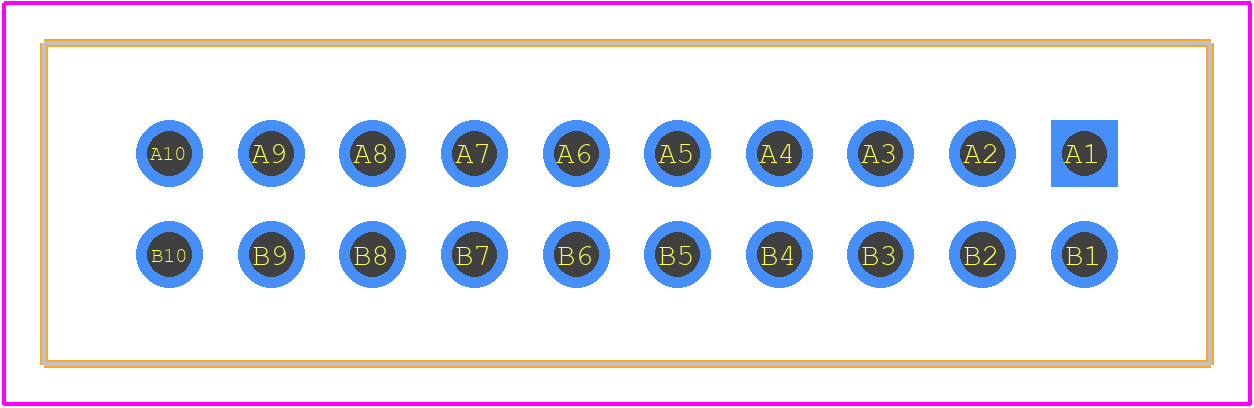

PCB Footprints
09242206414 - HARTING PCB footprint - Other - Other - 09242206414-2
click to zoom
3D Models
09242206414 - HARTING - 3D model - Other - 09242206414-2
click to zoom

09242206414 Details

  • Manufacturer Part Number:

    09242206414

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09242206414 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09242206414 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09242206414 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09242206414 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 09242206414 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • Yes, the 09242206414 connector is designed to be compatible with other HARTING connectors and products, including the Han-Modular series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09242206414 Overview

Use the download button to access the 09242206414 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09242, or try a keyword search, such as Headers and Edge Type Connectors
