09242206850 - HARTING

Description: DIN 3B female straight 20pin, press-in 4.5mm tails, PL2

Download 09242206850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

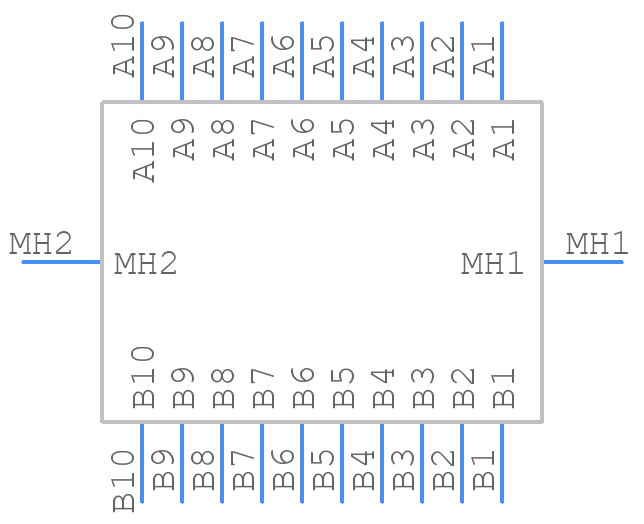

09242206850 - HARTING - PCB symbol
click to zoom
PCB Footprints

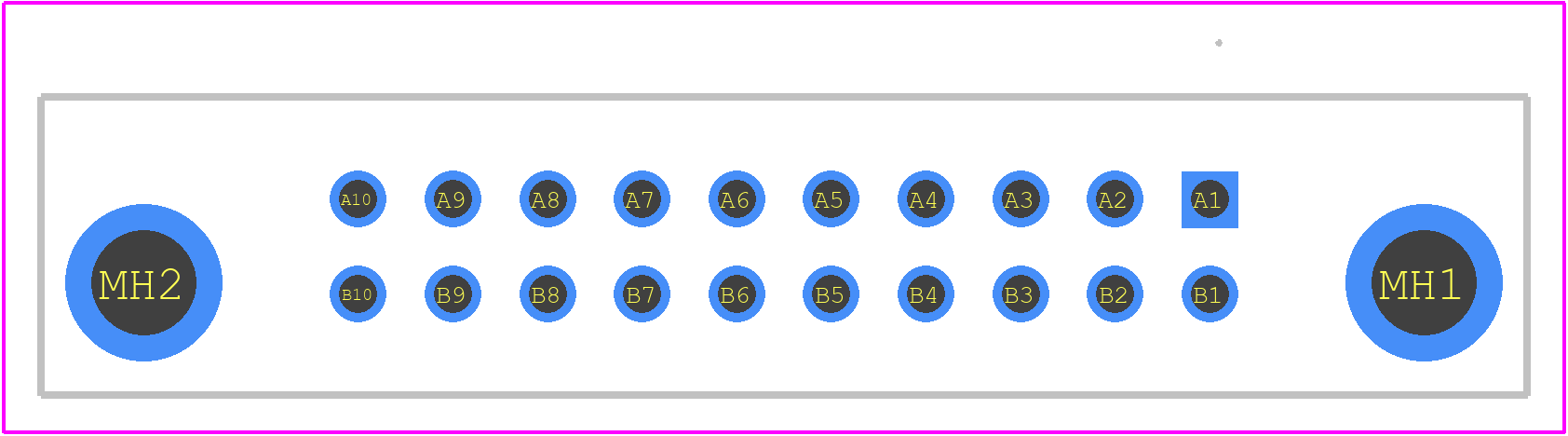

09242206850 - HARTING PCB footprint - Other - Other - 09242206850-2
click to zoom
3D Models
09242206850 - HARTING - 3D model - Other - 09242206850-2
click to zoom

09242206850 Details

  • Manufacturer Part Number:

    09242206850

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09242206850 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09242206850 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09242206850 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09242206850 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09242206850 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The 09242206850 connector has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
