09251306919 - HARTING

Description: DIN 3C male angled 30pin, PL2, THR/SMC

Download 09251306919 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

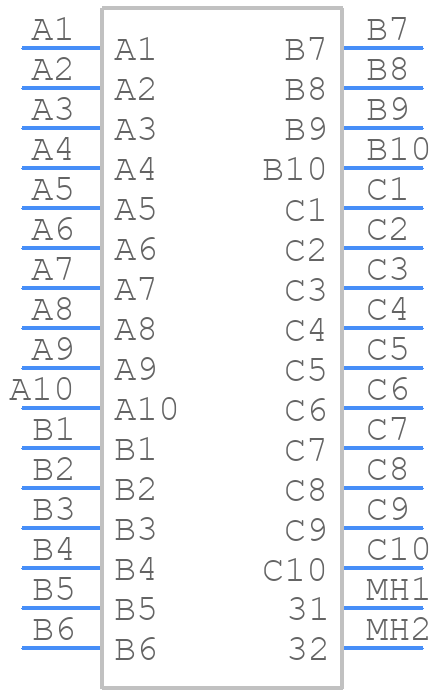

09251306919 - HARTING - PCB symbol
click to zoom
PCB Footprints

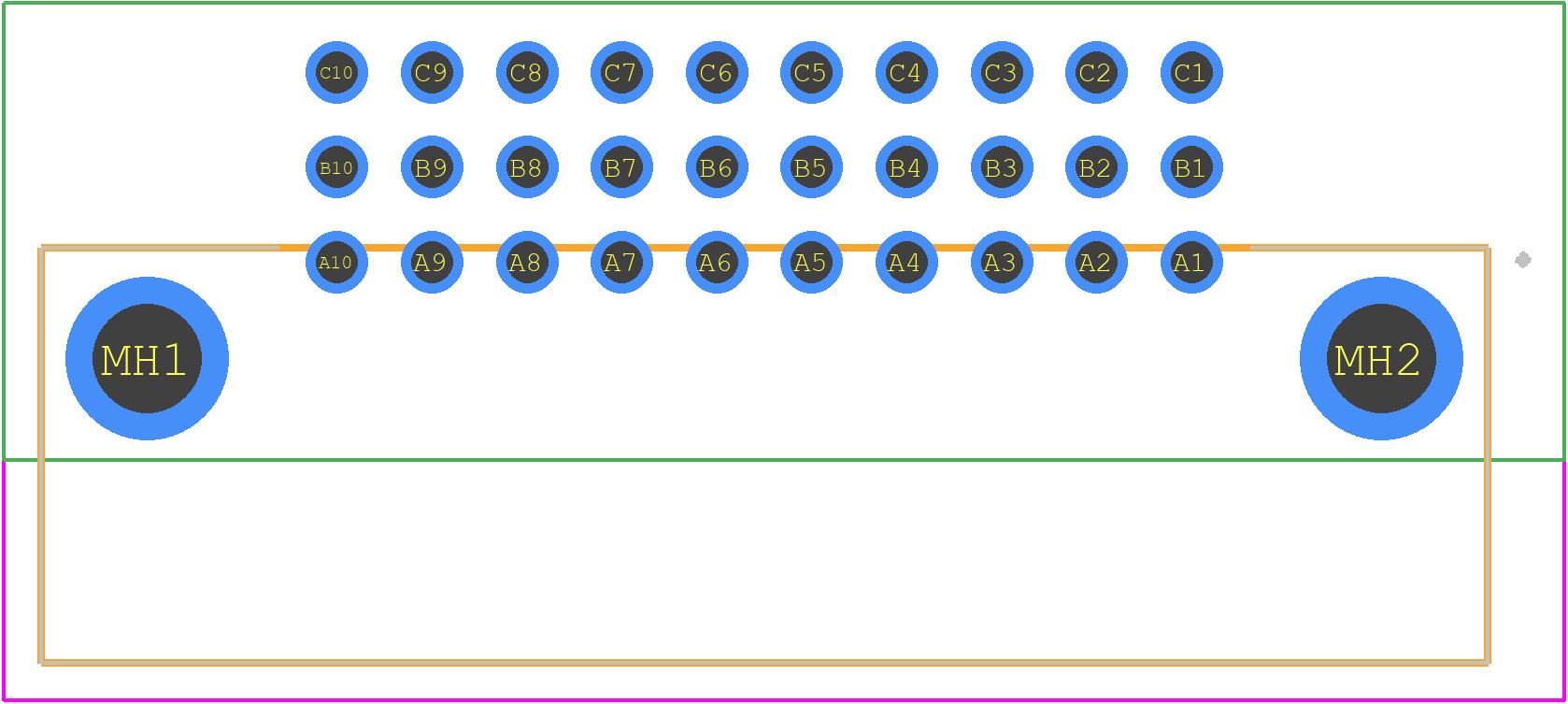

09251306919 - HARTING PCB footprint - Other - Other - 09251306919
click to zoom
3D Models
09251306919 - HARTING - 3D model - Other - 09251306919
click to zoom

09251306919 Details

  • Manufacturer Part Number:

    09251306919

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

09251306919 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
  • The 09251306919 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
  • The maximum operating temperature range for the 09251306919 connector is -40°C to +125°C, as specified in the datasheet.
  • Yes, the connector is designed to meet the IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09251306919 Overview

Use the download button to access the 09251306919 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09251, or try a keyword search, such as Headers and Edge Type Connectors
