09252206824 - HARTING

Description: DIN 3C female straight 20pin, 2.9mm tails, PL2 (rows a,c loaded)

Download 09252206824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

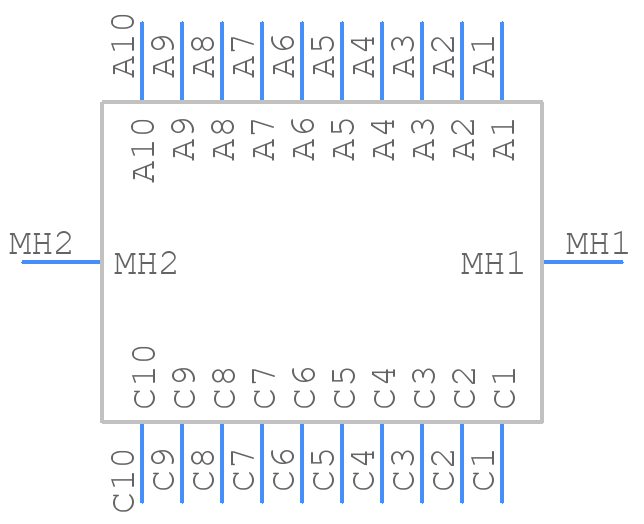

Symbol
09252206824 - HARTING - PCB symbol
click to zoom

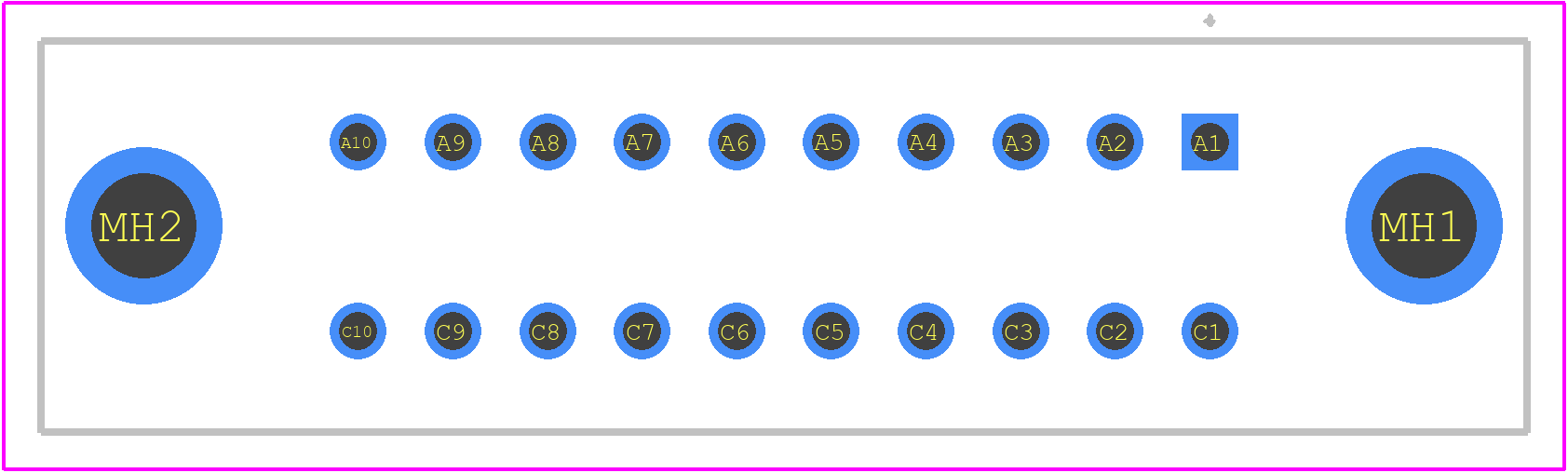

PCB Footprints
09252206824 - HARTING PCB footprint - Other - Other - 09252206824-2
click to zoom
3D Models
09252206824 - HARTING - 3D model - Other - 09252206824-2
click to zoom

09252206824 Details

  • Manufacturer Part Number:

    09252206824

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

09252206824 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09252206824 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09252206824 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific vibration requirements.
  • The 09252206824 connector is designed to operate in a temperature range of -40°C to +125°C and can withstand humid environments, but it's recommended to consult with HARTING's technical support for specific environmental requirements and potential derating.
  • The 09252206824 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09252206824 connector is designed to be compatible with other HARTING connectors of the same series, but compatibility with third-party connectors should be verified through testing and validation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09252206824 Overview

Use the download button to access the 09252206824 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09252, or try a keyword search, such as Headers and Edge Type Connectors
