The operating temperature range for the 09252306841 connector is -40°C to 125°C, according to HARTING's specifications.
Yes, the 09252306841 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
The 09252306841 connector has a IP67 rating, which means it is protected against dust and water ingress, and can withstand exposure to harsh environments. However, it's recommended to consult HARTING's documentation and perform testing to ensure the connector meets the specific requirements of your application.
The 09252306841 connector has a mating cycle life of at least 500 cycles, according to HARTING's specifications. This means it can withstand repeated connections and disconnections without compromising its performance.
The 09252306841 connector is part of HARTING's Han series, which is a widely adopted standard in the industry. It is compatible with other HARTING Han series products and may be compatible with third-party components, but it's recommended to verify compatibility before use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09252306841 Overview

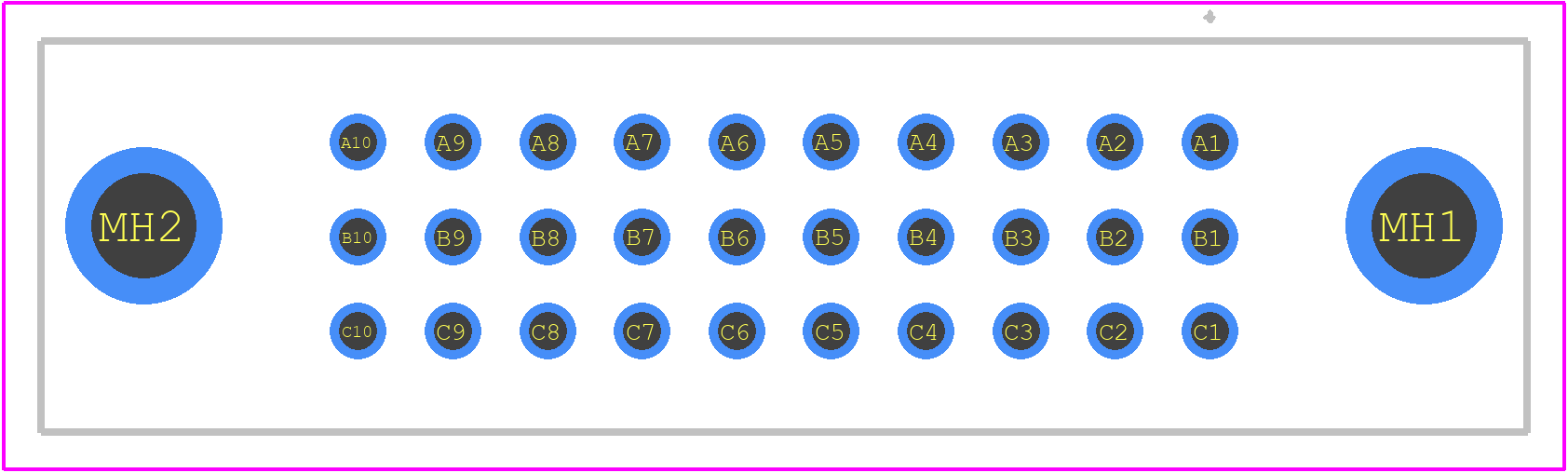

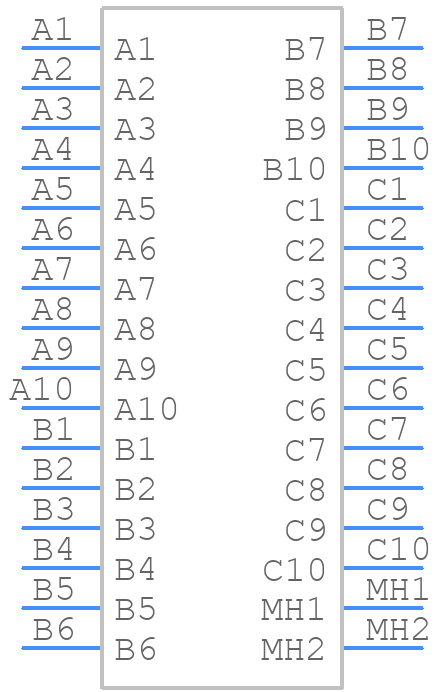

Use the download button to access the 09252306841 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09252,
or try a keyword search, such as Headers and Edge Type Connectors
