09271326904 - HARTING

Description: DIN 2Q male straight 32pin, 5.0mm press-in, PL2

Download 09271326904 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

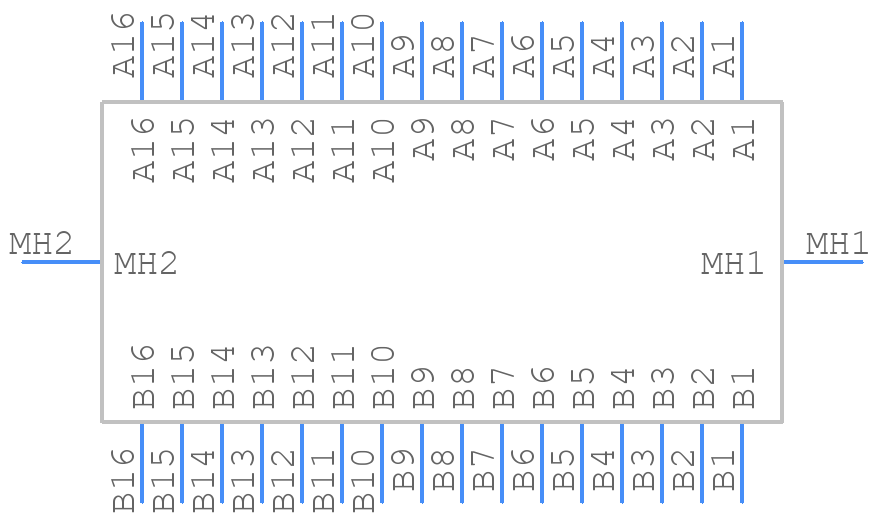

Symbol
09271326904 - HARTING - PCB symbol
click to zoom

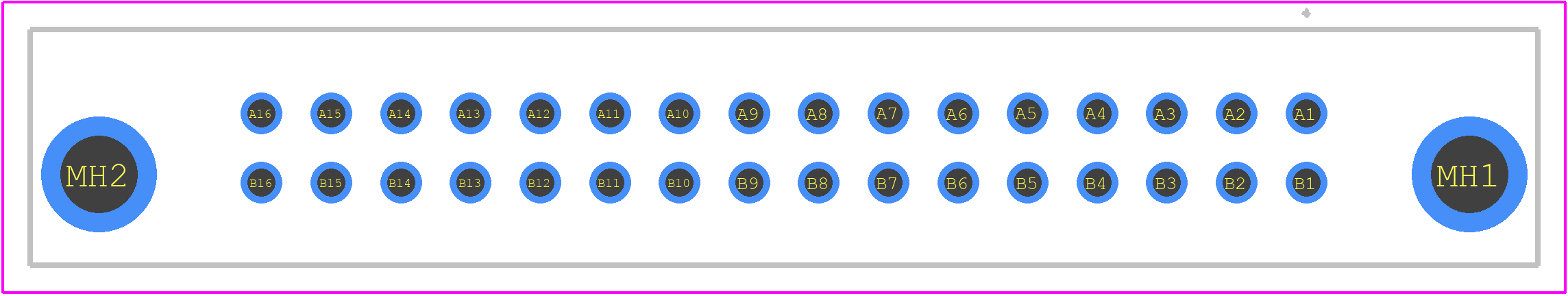

PCB Footprints
09271326904 - HARTING PCB footprint - Other - Other - 09271326904
click to zoom
3D Models
09271326904 - HARTING - 3D model - Other - 09271326904
click to zoom

09271326904 Details

  • Manufacturer Part Number:

    09271326904

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09271326904 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 09271326904 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 09271326904 connector has an IP67 rating, making it suitable for outdoor use and harsh environments, including exposure to dust and water.
  • The maximum operating temperature range for the 09271326904 connector is -40°C to 125°C, as specified in the datasheet.
  • Yes, the 09271326904 connector is designed for high-speed data transmission, with a bandwidth of up to 10 Gbps and a frequency range of up to 3 GHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09271326904 Overview

Use the download button to access the 09271326904 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09271, or try a keyword search, such as Headers and Edge Type Connectors
