- Part Number 09272326801
- Manufacturer HARTING
- Pin Count 34
- Part Category Connector
- Package Category Other
- Footprint Name Other - 09272326801-1
- Released Date Apr 12, 2020
- Last Modified Date Apr 20, 2023 9:17 PM UTC
- Pinout / Pin List Click Here (Member Only)
09272326801 Details
-
Manufacturer Part Number:
09272326801
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8
-
Additional Feature:
STANDARD: DIN 41612
-
Connector Type:
BOARD EURO CONNECTOR
09272326801 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the 09272326801 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the 09272326801 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
-
Yes, the 09272326801 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
-
Yes, the 09272326801 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
-
The 09272326801 connector has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
09272326801 Overview

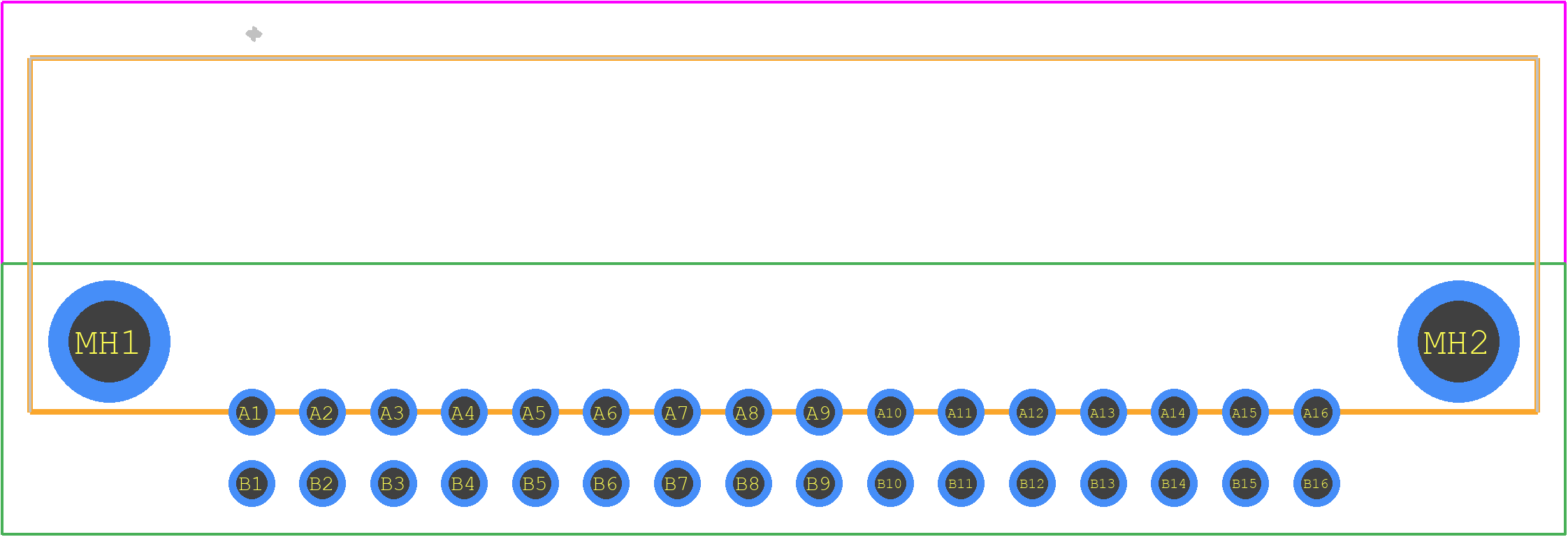

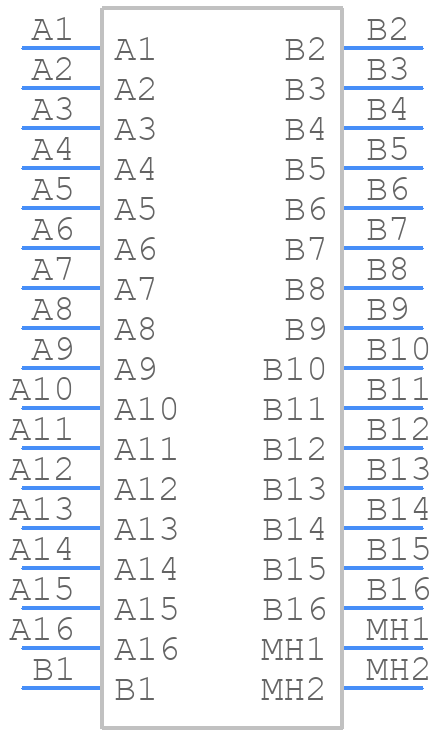

Use the download button to access the 09272326801 schematic symbol, PCB footprint, and 3D model.
