Part Image

09272326804 - HARTING

Description: DIN 2Q female angled, 32pin, PL2, THR/SMC

Download 09272326804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

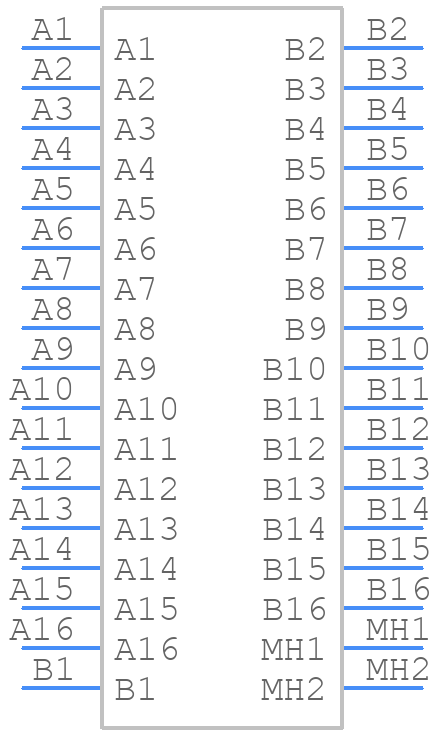

09272326804 - HARTING - PCB symbol
click to zoom
PCB Footprints

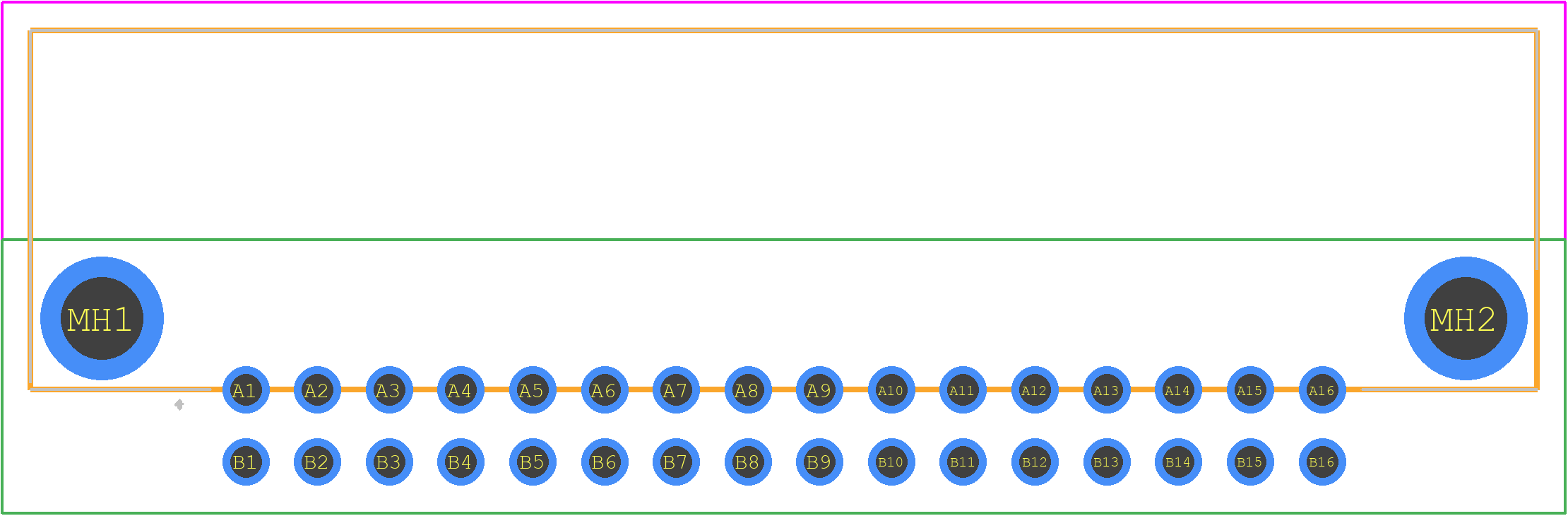

09272326804 - HARTING PCB footprint - Other - Other - 09272326804-1
click to zoom
3D Models
09272326804 - HARTING - 3D model - Other - 09272326804-1
click to zoom

09272326804 Details

  • Manufacturer Part Number:

    09272326804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09272326804 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09272326804 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09272326804 connector has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 09272326804 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 09272326804 connector has a robust design and materials that can withstand exposure to harsh chemicals, including fuels, oils, and cleaning agents. However, it's recommended to consult the HARTING chemical resistance chart for specific compatibility information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09272326804 Overview

Use the download button to access the 09272326804 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09272, or try a keyword search, such as Headers and Edge Type Connectors
