09281326904 - HARTING

Description: DIN 2R male straight, 32pin, press-in 5.0mm tails, PL2 (rows a,c loaded)

Download 09281326904 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

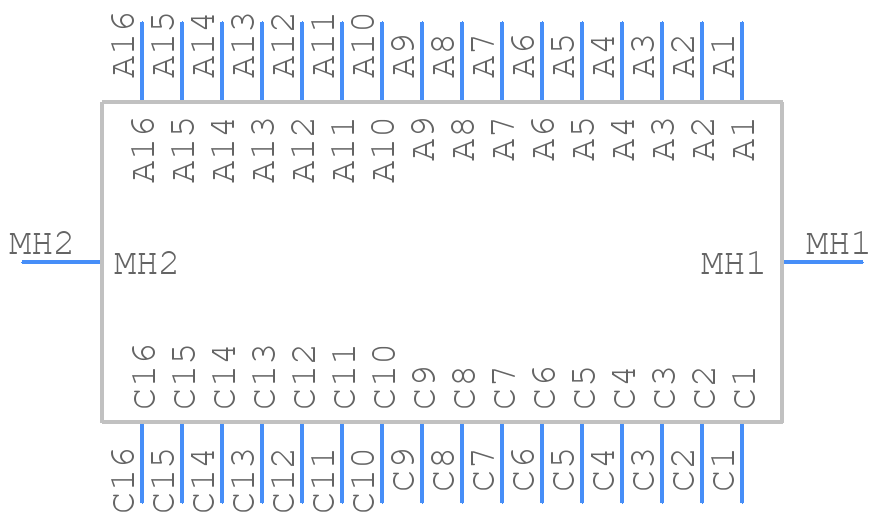

Symbol
09281326904 - HARTING - PCB symbol
click to zoom

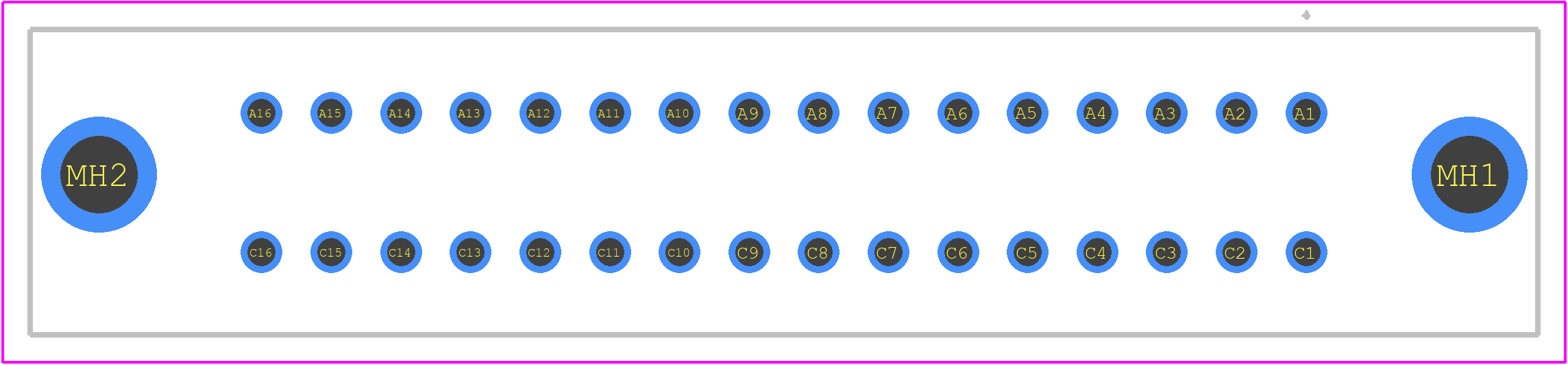

PCB Footprints
09281326904 - HARTING PCB footprint - Other - Other - 09281326904
click to zoom
3D Models
09281326904 - HARTING - 3D model - Other - 09281326904
click to zoom

09281326904 Details

  • Manufacturer Part Number:

    09281326904

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612 PANEL MOUTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09281326904 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 09281326904 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • The 09281326904 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
  • The 09281326904 connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09281326904 connector meets the IEC 61076-2-101 standard and is also certified to UL 1977 and ECE R10-04 standards.
