Part Image

09283486902 - HARTING

Description: DIN 2R male straight, 48pin, w/ board locks, 2.5mm tails, PL2

Download 09283486902 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09283486902 - HARTING - PCB symbol
click to zoom

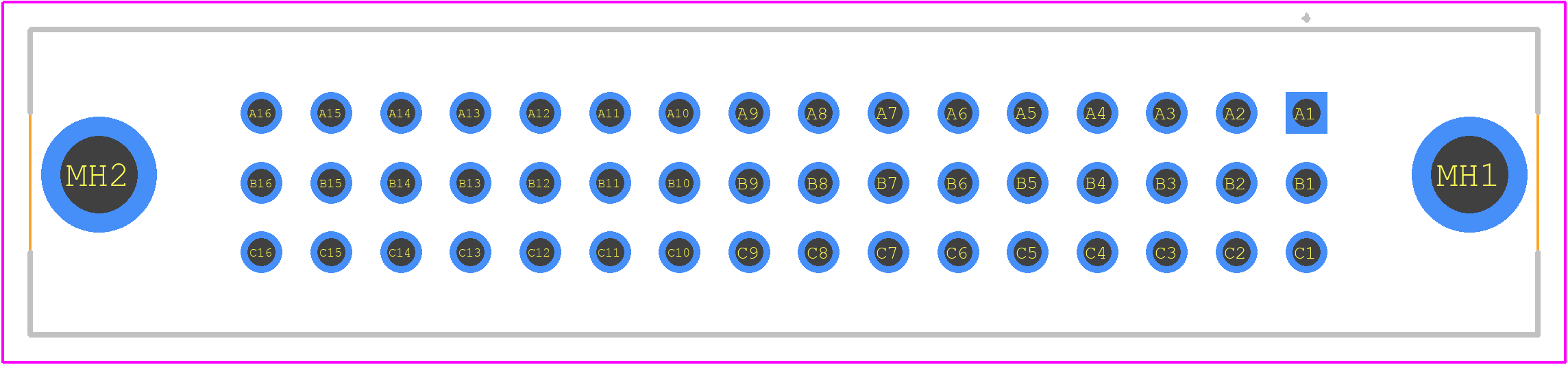

PCB Footprints
09283486902 - HARTING PCB footprint - Other - Other - 09283486902-1
click to zoom
3D Models
09283486902 - HARTING - 3D model - Other - 09283486902-1
click to zoom

09283486902 Details

  • Manufacturer Part Number:

    09283486902

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09283486902 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09283486902 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09283486902 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09283486902 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09283486902 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09283486902 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09283486902 Overview

Use the download button to access the 09283486902 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09283, or try a keyword search, such as Headers and Edge Type Connectors
