09283486903 - HARTING

Description: DIN 2R male straight, 48pin, w/ board locks, 4.0mm tails, PL2

Download 09283486903 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09283486903 - HARTING - PCB symbol
click to zoom
PCB Footprints

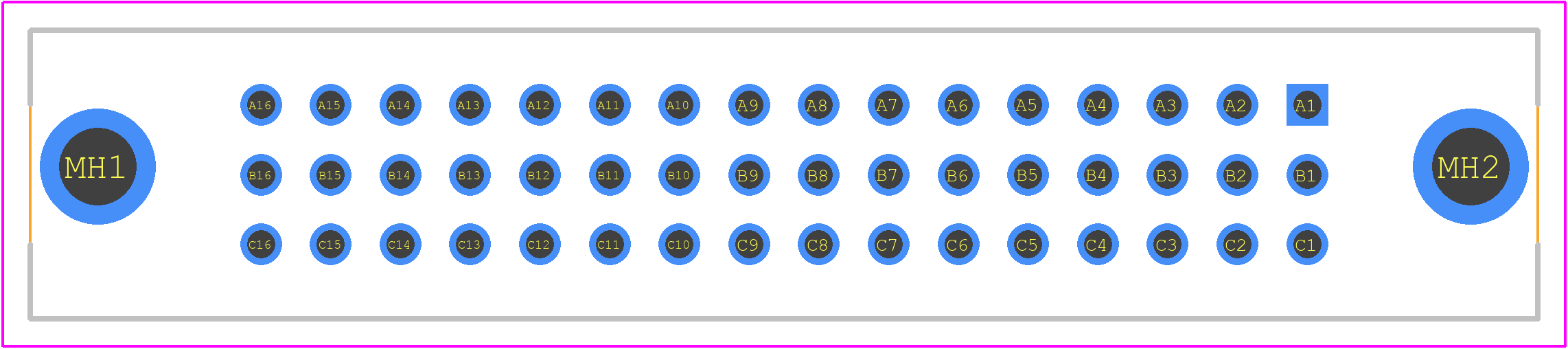

09283486903 - HARTING PCB footprint - Other - Other - 09283486903-1
click to zoom
3D Models
09283486903 - HARTING - 3D model - Other - 09283486903-1
click to zoom

09283486903 Details

  • Manufacturer Part Number:

    09283486903

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09283486903 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09283486903 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 09283486903 connector is part of the HARTING Han-Modular series, which is compatible with other Han-Modular connectors and inserts.
  • The 09283486903 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, the 09283486903 connector has a IP67 rating, which means it is protected against dust and water ingress, and can withstand exposure to chemicals and high humidity environments.
