09291306519792 - HARTING

Description: Connectors, Male connector, Reflow soldering termination (THR), Rated current: ?2 A, Contacts: 30, Straight

Download 09291306519792 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

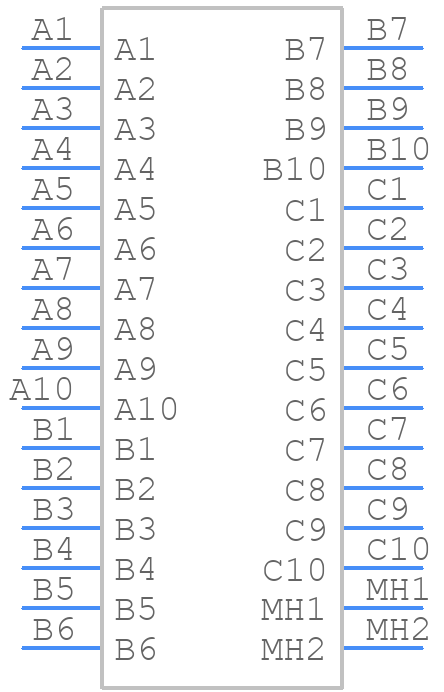

09291306519792 - HARTING - PCB symbol
click to zoom
PCB Footprints

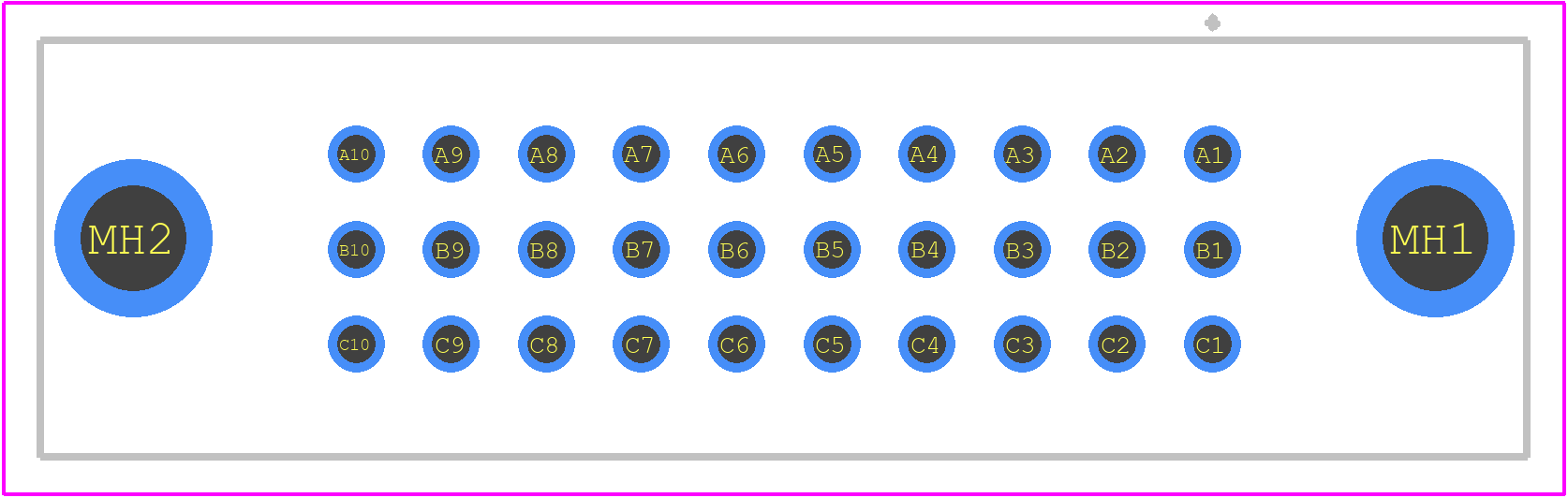

09291306519792 - HARTING PCB footprint - Other - Other - 09291306519792
click to zoom
3D Models
09291306519792 - HARTING - 3D model - Other - 09291306519792
click to zoom

09291306519792 Details

  • Manufacturer Part Number:

    09291306519792

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09291306519792 Overview

Use the download button to access the 09291306519792 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09291, or try a keyword search, such as Headers and Edge Type Connectors
