09291306520 - HARTING

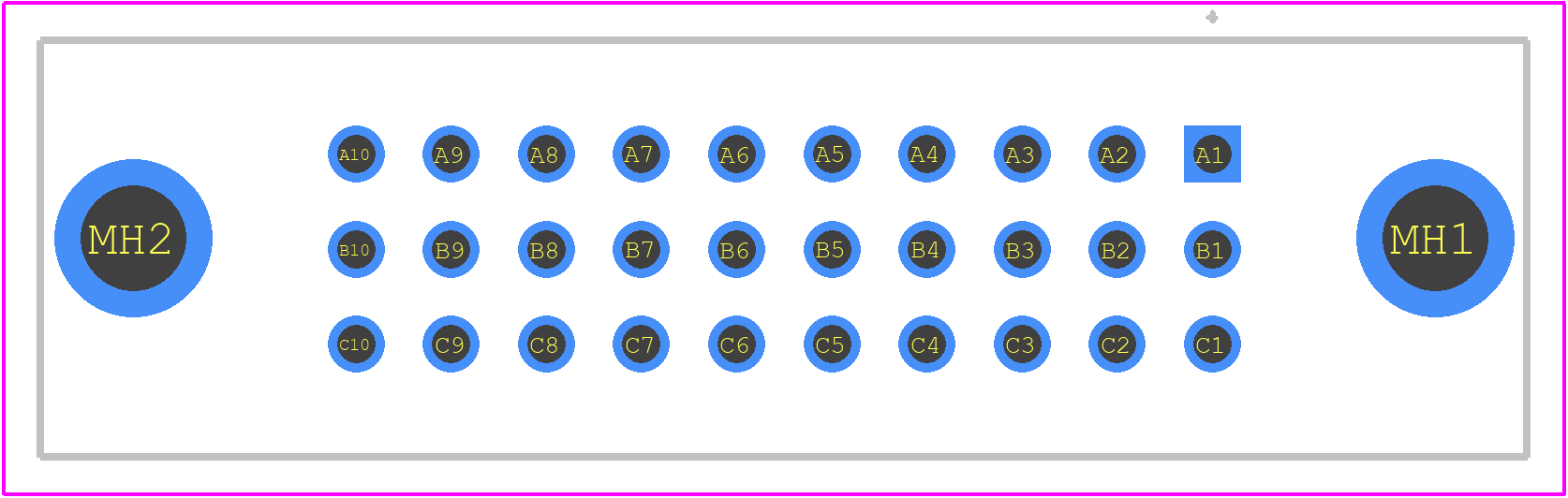

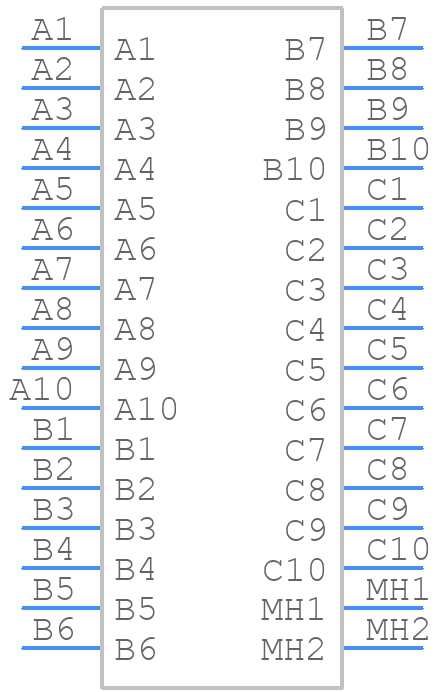

09291306520 Details

• Manufacturer Part Number:

  09291306520

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8

• Additional Feature:

  STANDARD: DIN 41612

• Board Mounting Option:

  HOLE 0.11

• Body Breadth:

  0.437 inch

• Body Depth:

  0.459 inch

• Body Length:

  1.561 inch

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Durability:

  400 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  30 N

• Insulation Resistance:

  1000000000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.110

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,B,C

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2 A

• Reference Standard:

  CSA;IEC;UL

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  30

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  30 N
