09291306592 - HARTING

Description: DIN 3R male straight, 30pin, 2.5mm tails, w/o fixing flange, PL2

Download 09291306592 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

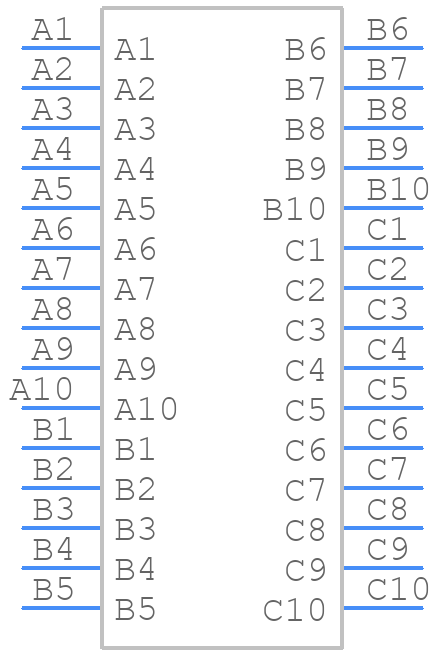

09291306592 - HARTING - PCB symbol
click to zoom
PCB Footprints

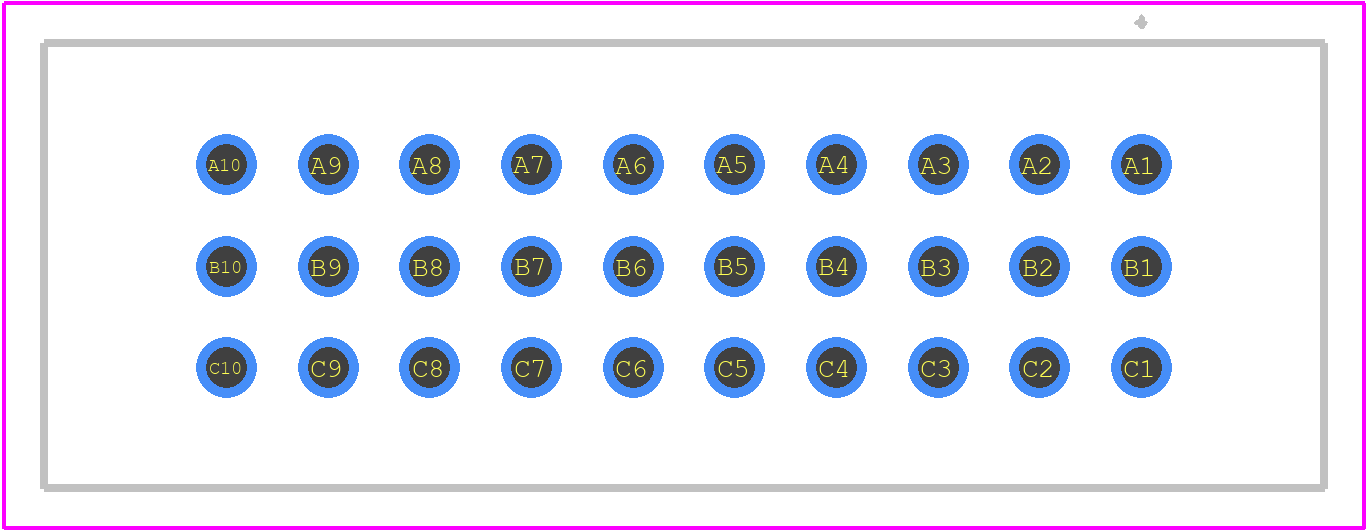

09291306592 - HARTING PCB footprint - Other - Other - 09291306592
click to zoom
3D Models
09291306592 - HARTING - 3D model - Other - 09291306592
click to zoom

09291306592 Details

  • Manufacturer Part Number:

    09291306592

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09291306592 Overview

Use the download button to access the 09291306592 schematic symbol, PCB footprint, and 3D model.
