- Part Number 09292306801
- Manufacturer HARTING
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - 09292306801-2
- Released Date Jun 28, 2021
- Last Modified Date May 24, 2023 9:08 AM UTC
- Pinout / Pin List Click Here (Member Only)
09292306801 Details
-
Manufacturer Part Number:
09292306801
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
NOT APPLICABLE
-
Contact Material:
NOT SPECIFIED
09292306801 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the 09292306801 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the 09292306801 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
-
Yes, the 09292306801 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
-
Yes, the 09292306801 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
-
The maximum current rating for the 09292306801 connector is 40 A per contact, depending on the specific application and environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
09292306801 Overview

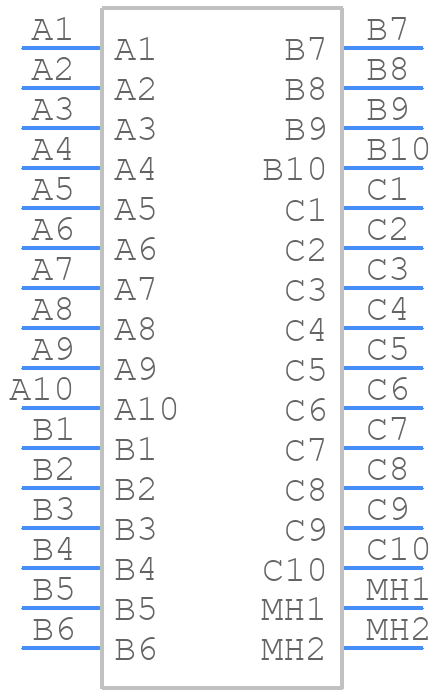

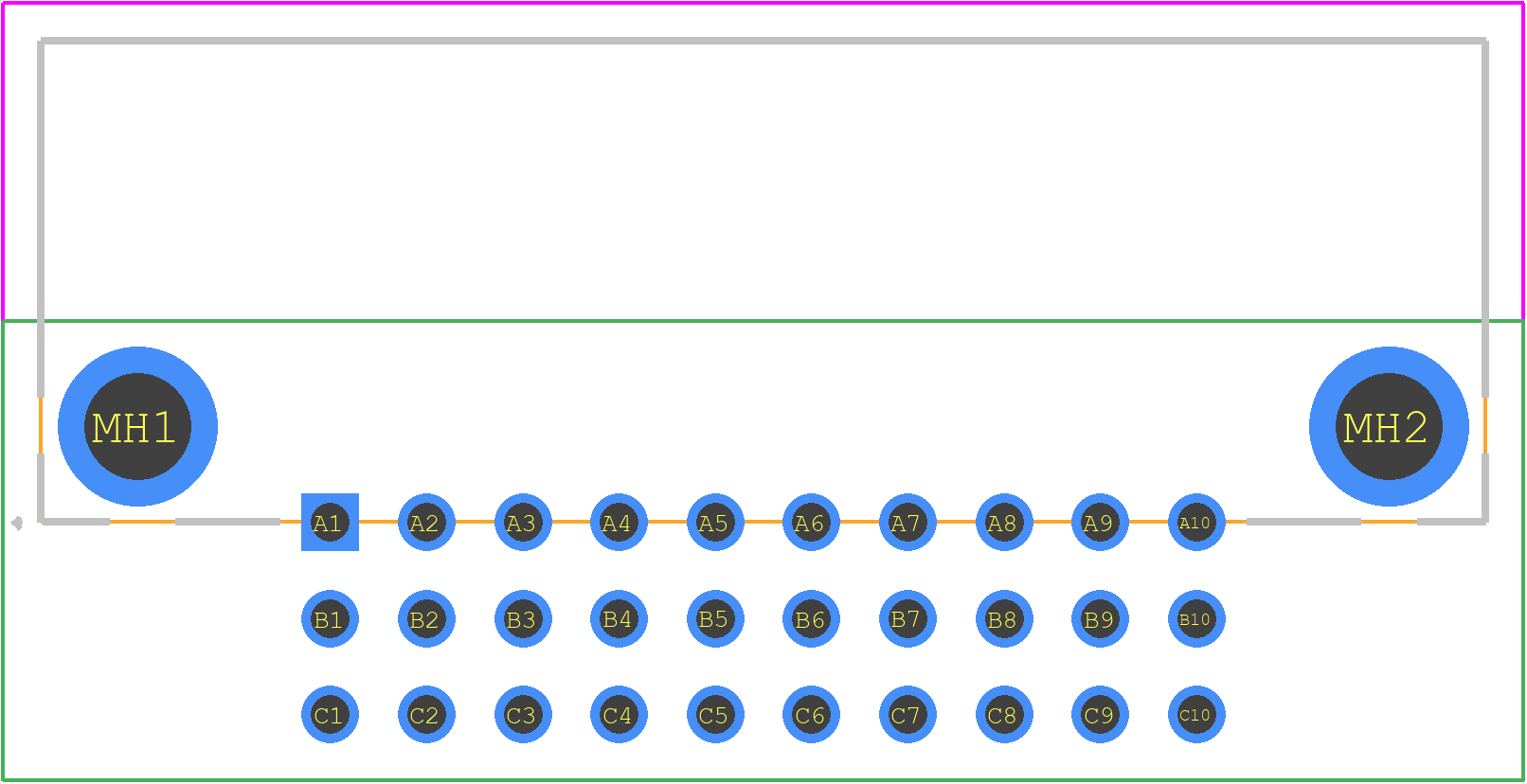

Use the download button to access the 09292306801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09292,
or try a keyword search, such as Headers and Edge Type Connectors
