Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
The 093267 has a high power rating, and proper thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance. Bourns also recommends following their thermal management guidelines in their application notes.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the 093267 within a temperature range of -20°C to 100°C for optimal performance.
The 093267 is designed to withstand moderate vibration levels, but it's not suitable for extreme vibration environments. If your application involves high vibration, consider using a component with a more robust mechanical design or adding additional mechanical support to ensure the component's reliability.
To ensure reliability in high-humidity environments, follow proper handling and storage procedures, and consider using a conformal coating or potting compound to protect the component from moisture. Additionally, ensure the PCB is designed with moisture-resistant materials and follows proper layout guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
093267 Overview

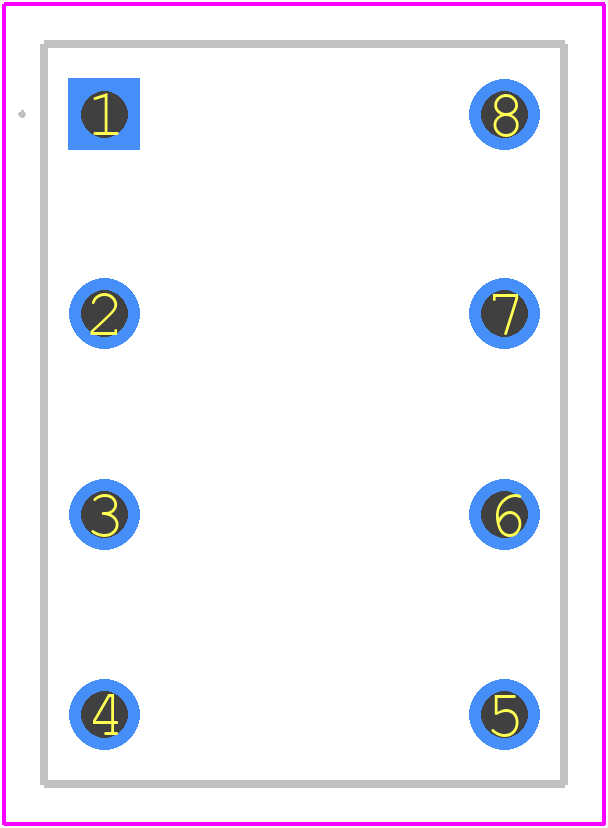

Use the download button to access the 093267 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09326,
or try a keyword search, such as Data Line Filters
