09350022102 - HARTING

Description: RJ Industrial RJ45 Jack Cat6, solder, vertical, EMC

Download 09350022102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09350022102 - HARTING - PCB symbol
click to zoom
PCB Footprints

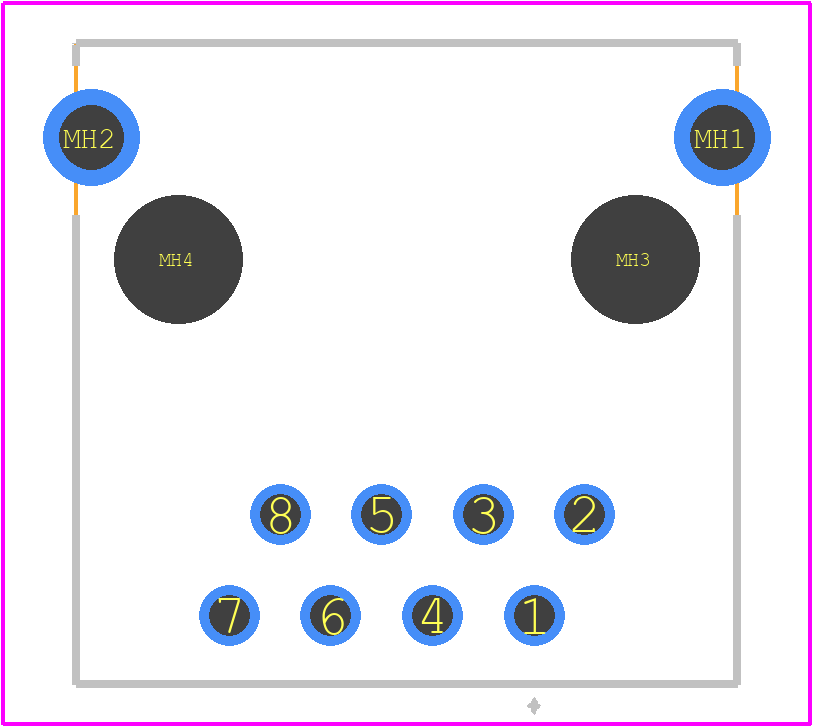

09350022102 - HARTING PCB footprint - Other - Other - 09350022102-1
click to zoom
3D Models
09350022102 - HARTING - 3D model - Other - 09350022102-1
click to zoom

09350022102 Details

  • Manufacturer Part Number:

    09350022102

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.629 inch

  • Body Depth:

    0.649 inch

  • Body Length:

    0.693 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Durability:

    750 Cycles

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.149 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

09350022102 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09350022102 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09350022102 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09350022102 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • Yes, the 09350022102 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum operating temperature of the 09350022102 connector is 125°C, making it suitable for use in high-temperature applications.
