0936268520 - Molex

0936268520 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 0936268520 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 0936268520 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environmental use. If you need a connector for outdoor use, consider a connector with a higher IP rating, such as IP67 or IP68.
• Can I use this connector with wire sizes other than 20 AWG?
  While the 0936268520 connector is designed for 20 AWG wire, you can use it with wire sizes between 18 AWG and 22 AWG. However, keep in mind that using wire sizes outside the recommended range may affect the connector's performance and reliability.

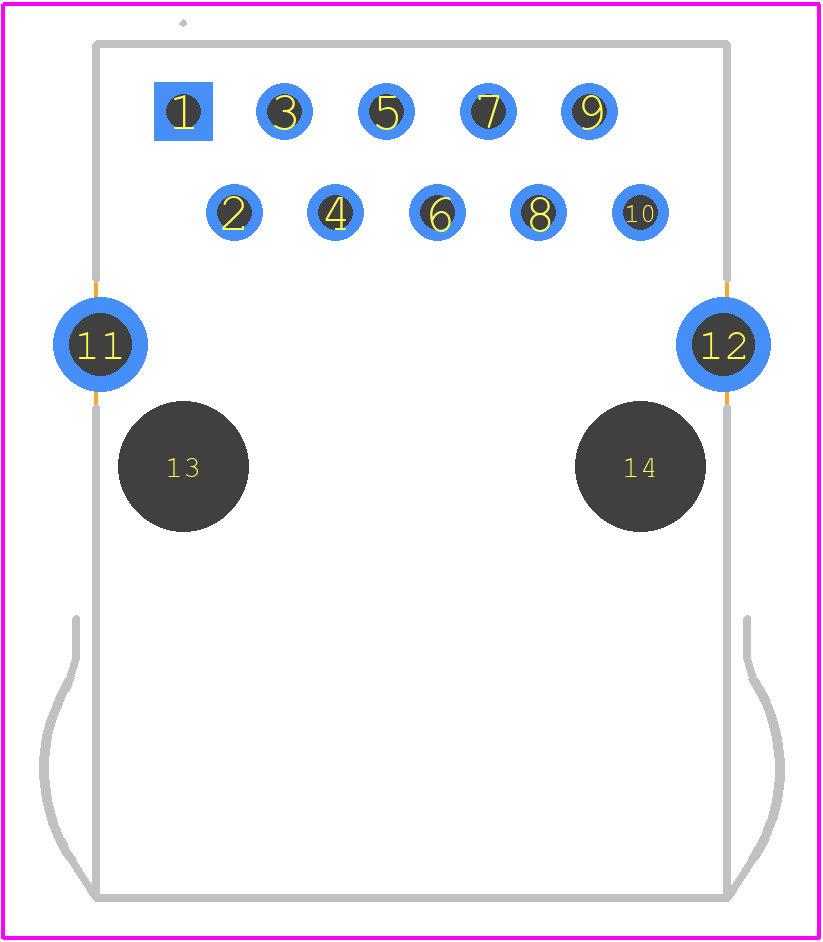

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow Molex's recommended PCB layout guidelines for the 0936268520 connector to ensure proper mating and unmating. The datasheet provides detailed information on PCB layout considerations, including pad size, spacing, and orientation.
