09452819002333 - HARTING

Description: HARTING ix Type B 10pin connector, vertical pcb mount, 1 piece

Download 09452819002333 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

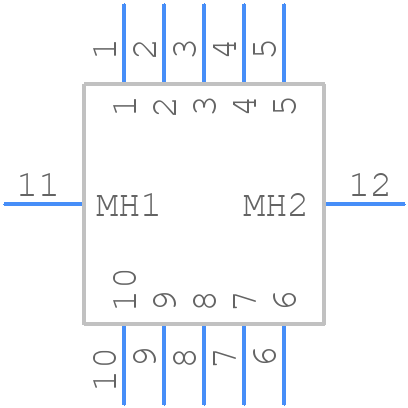

09452819002333 - HARTING - PCB symbol
click to zoom
PCB Footprints
09452819002333 - HARTING PCB footprint - Other - Other - 09452819002333-1
click to zoom
3D Models
09452819002333 - HARTING - 3D model - Other - 09452819002333-1
click to zoom

09452819002333 Details

  • Manufacturer Part Number:

    09452819002333

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

09452819002333 Frequently Asked Questions (FAQs)

  • The operating temperature range for this connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 09452819002333 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The mating cycle life of the 09452819002333 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • Yes, the 09452819002333 connector is designed to be compatible with other HARTING products and can be used with third-party components that meet the relevant industry standards. However, it's recommended to consult with HARTING's technical support or application engineers to ensure compatibility and optimal performance.
