09455459011 - HARTING

Description: HARTING PushPull V4 Signal, 10pins, panel side insert for angled solder termination

Download 09455459011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

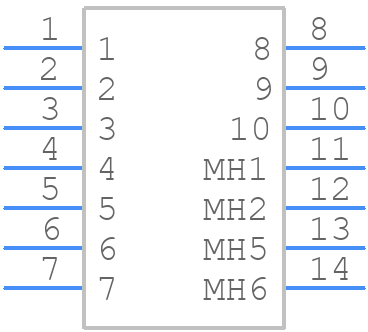

Symbol
09455459011 - HARTING - PCB symbol
click to zoom

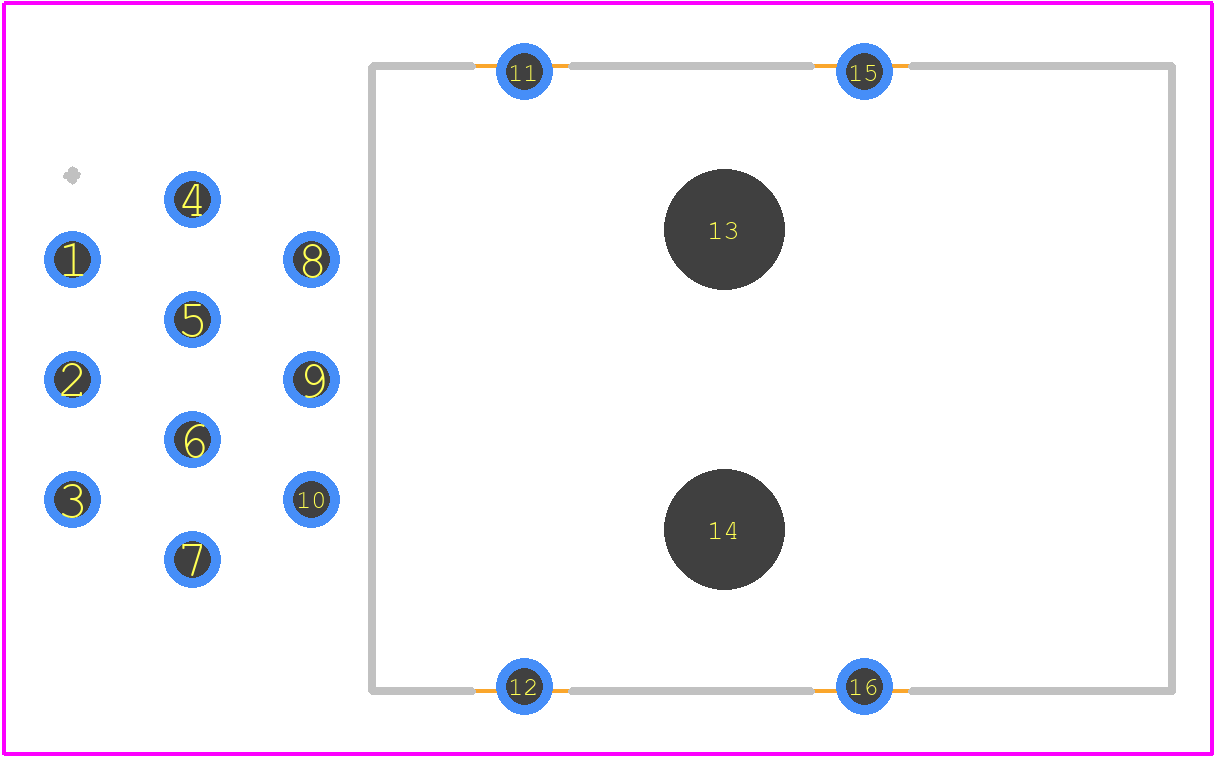

PCB Footprints
09455459011 - HARTING PCB footprint - Other - Other - 09455459011-7
click to zoom
3D Models
09455459011 - HARTING - 3D model - Other - 09455459011-7
click to zoom

09455459011 Details

  • Manufacturer Part Number:

    09455459011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Body/Shell Style:

    JACK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    CSA,DNV,UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

09455459011 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09455459011 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09455459011 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the 09455459011 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The operating temperature range of the 09455459011 connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09455459011 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating of connectors with different contact arrangements and sizes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09455459011 Overview

Use the download button to access the 09455459011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09455, or try a keyword search, such as Power Connectors
