Part Image

09455511119 - HARTING

Description: RJ Industrial RJ45 Jack Cat5, solder (THR/SMC), vertical, EMC, (w green/yellow LED)

Download 09455511119 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

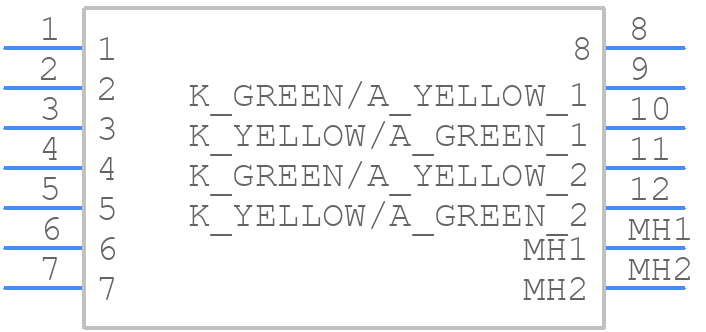

Symbol
09455511119 - HARTING - PCB symbol
click to zoom

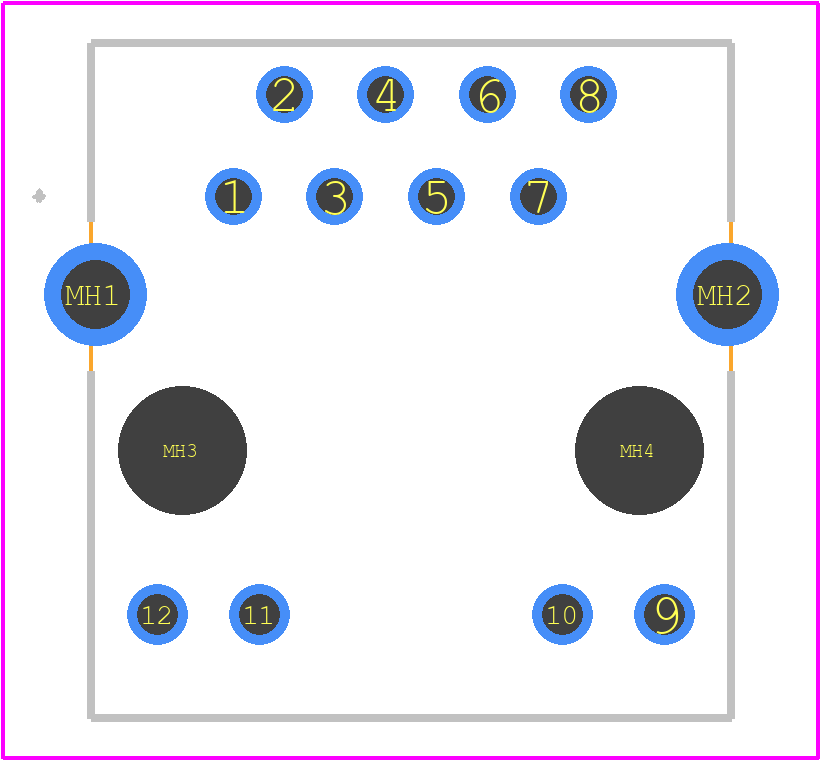

PCB Footprints
09455511119 - HARTING PCB footprint - Other - Other - 09455511119-2
click to zoom
3D Models
09455511119 - HARTING - 3D model - Other - 09455511119-2
click to zoom

09455511119 Details

  • Manufacturer Part Number:

    09455511119

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.661 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.63 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Durability:

    750 Cycles

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

09455511119 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09455511119 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09455511119 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09455511119 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09455511119 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09455511119 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09455511119 Overview

Use the download button to access the 09455511119 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09455, or try a keyword search, such as Telecom and Datacom Connectors
