09455511124 - HARTING

Description: RJ Industrial RJ45 4-port Jack Cat5, solder, angled

Download 09455511124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

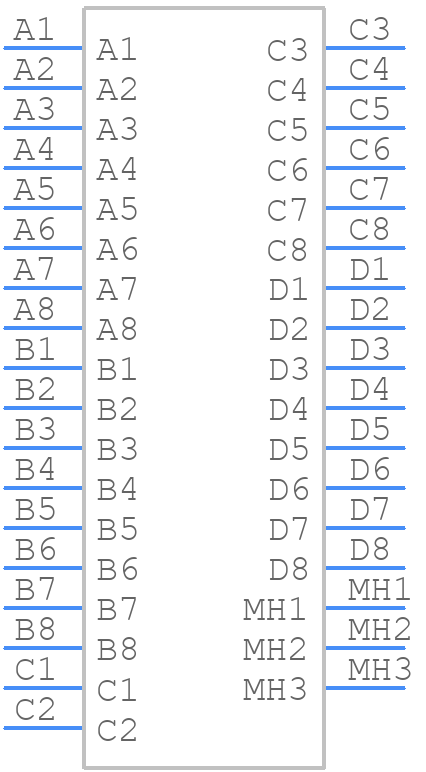

09455511124 - HARTING - PCB symbol
click to zoom
PCB Footprints

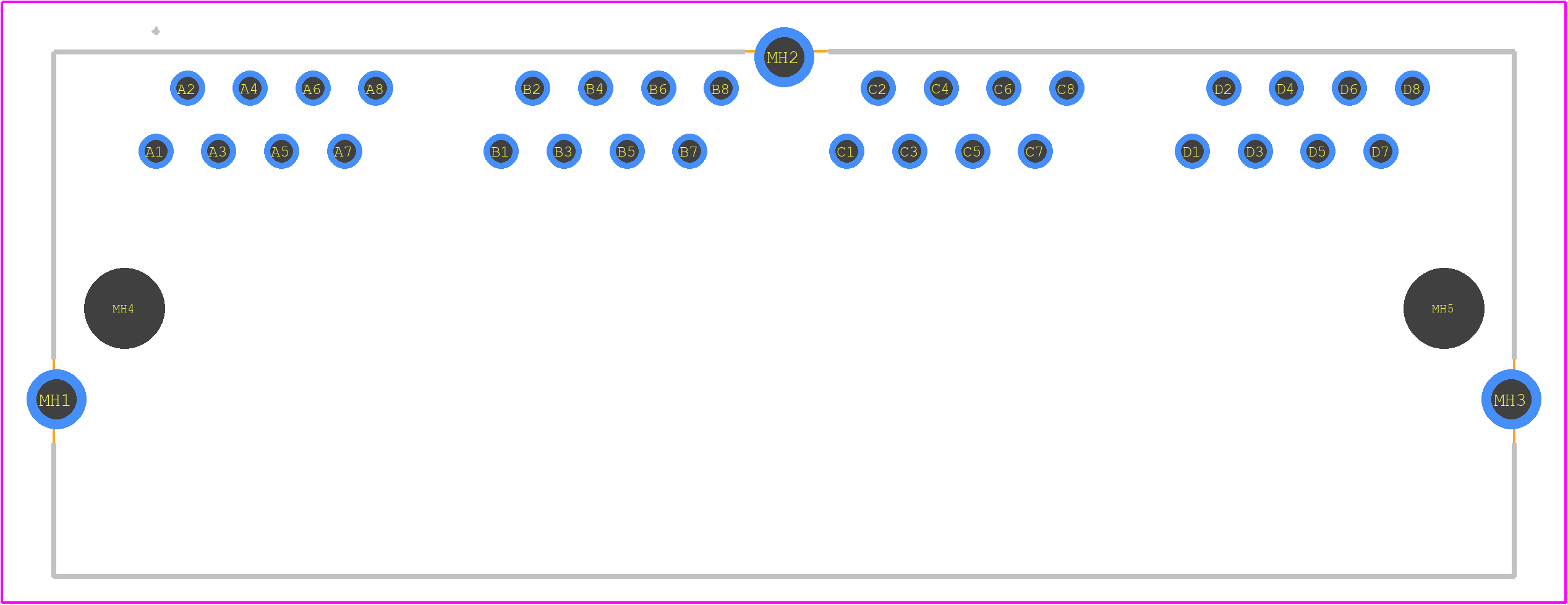

09455511124 - HARTING PCB footprint - Other - Other - 09455511124-1
click to zoom
3D Models
09455511124 - HARTING - 3D model - Other - 09455511124-1
click to zoom

09455511124 Details

  • Manufacturer Part Number:

    09455511124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09455511124 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09455511124 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09455511124 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the 09455511124 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The 09455511124 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09455511124 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating of different connectors within the series.
