09455511130 - HARTING

Description: RJ Industrial RJ45 Jack with transformer 10/100 Mbit/s, solder (THR/SMC), angled, (w/ light pipe)

Download 09455511130 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

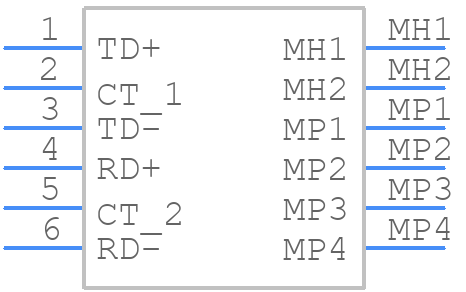

09455511130 - HARTING - PCB symbol
click to zoom
PCB Footprints

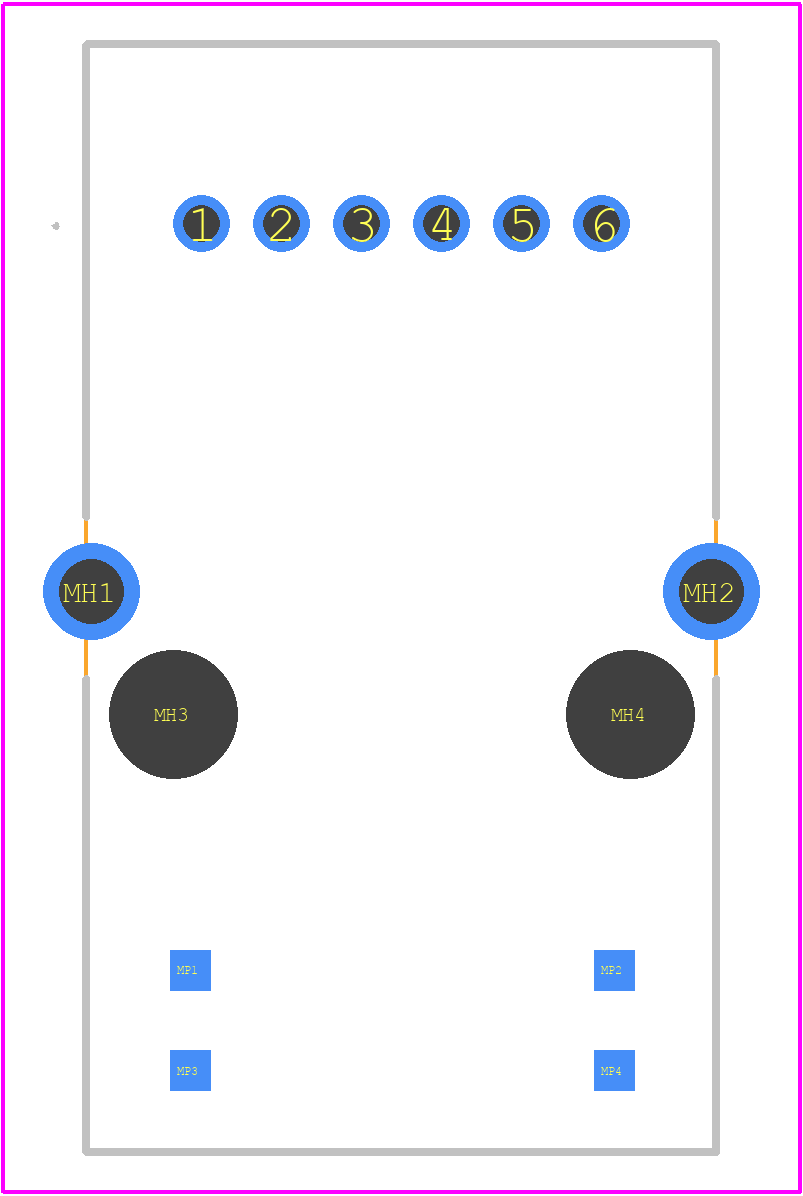

09455511130 - HARTING PCB footprint - Other - Other - 09455511130-3
click to zoom
3D Models
09455511130 - HARTING - 3D model - Other - 09455511130-3
click to zoom

09455511130 Details

  • Manufacturer Part Number:

    09455511130

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09455511130 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 09455511130 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, allowing for flexibility in design and assembly.
  • The operating temperature range of the 09455511130 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, the 09455511130 connector meets the requirements of IEC 61076-2-101, EN 50155, and ECE R118.01, making it suitable for use in rail, industrial, and automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09455511130 Overview

Use the download button to access the 09455511130 schematic symbol, PCB footprint, and 3D model.
