Part Image

09455511142 - HARTING

Description: RJ Industrial RJ45 Jack with transformer 10/100 Mbit/s, solder (THR/SMC), vertical, EMC, (w/ green/yellow LED)

Download 09455511142 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

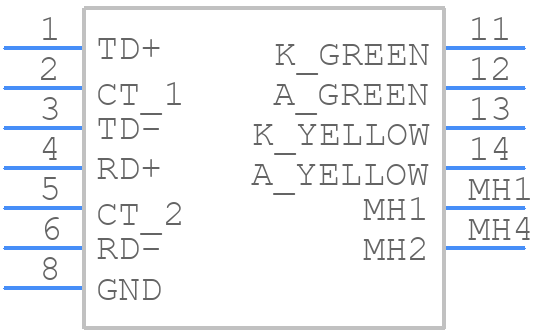

09455511142 - HARTING - PCB symbol
click to zoom
PCB Footprints

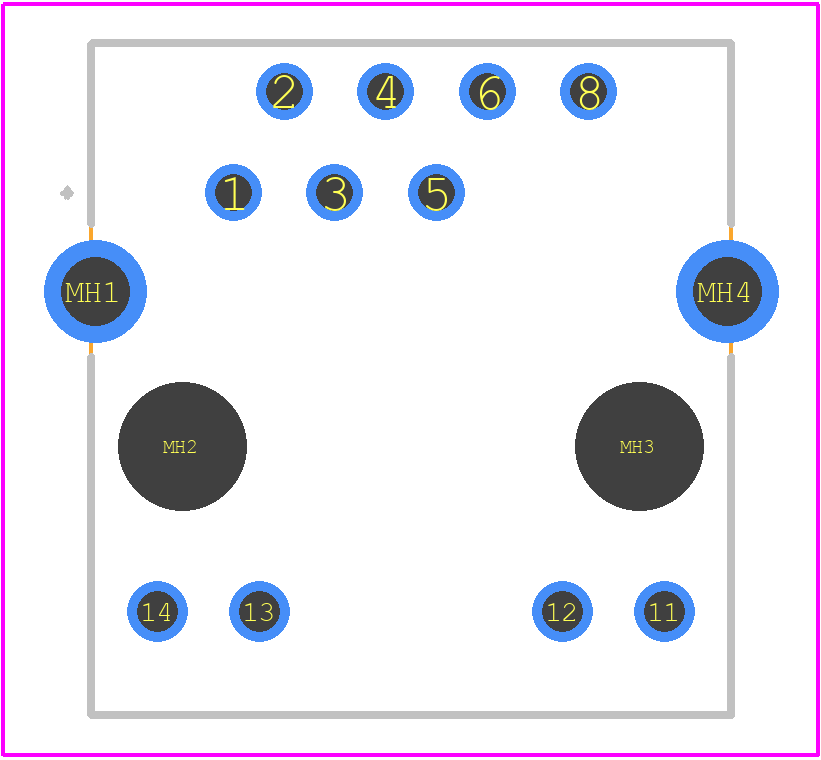

09455511142 - HARTING PCB footprint - Other - Other - 09455511142-2
click to zoom
3D Models
09455511142 - HARTING - 3D model - Other - 09455511142-2
click to zoom

09455511142 Details

  • Manufacturer Part Number:

    09455511142

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.661 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.63 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

09455511142 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09455511142 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09455511142 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09455511142 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
  • Yes, the 09455511142 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating for the 09455511142 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09455511142 Overview

Use the download button to access the 09455511142 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09455, or try a keyword search, such as Telecom and Datacom Connectors
