09455511151 - HARTING

Description: RJ Industrial RJ45 Jack with transformer 10/100 Mbit/s and POE, solder (THR/SMC), angled (w/ light pipe) - longer version

Download 09455511151 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

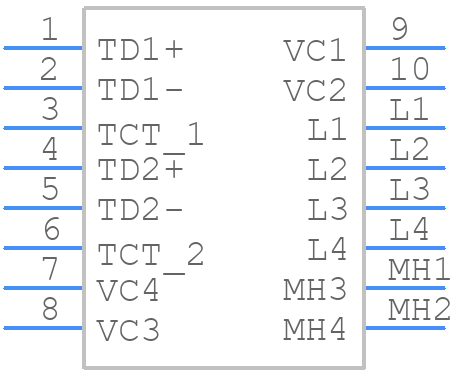

09455511151 - HARTING - PCB symbol
click to zoom
PCB Footprints

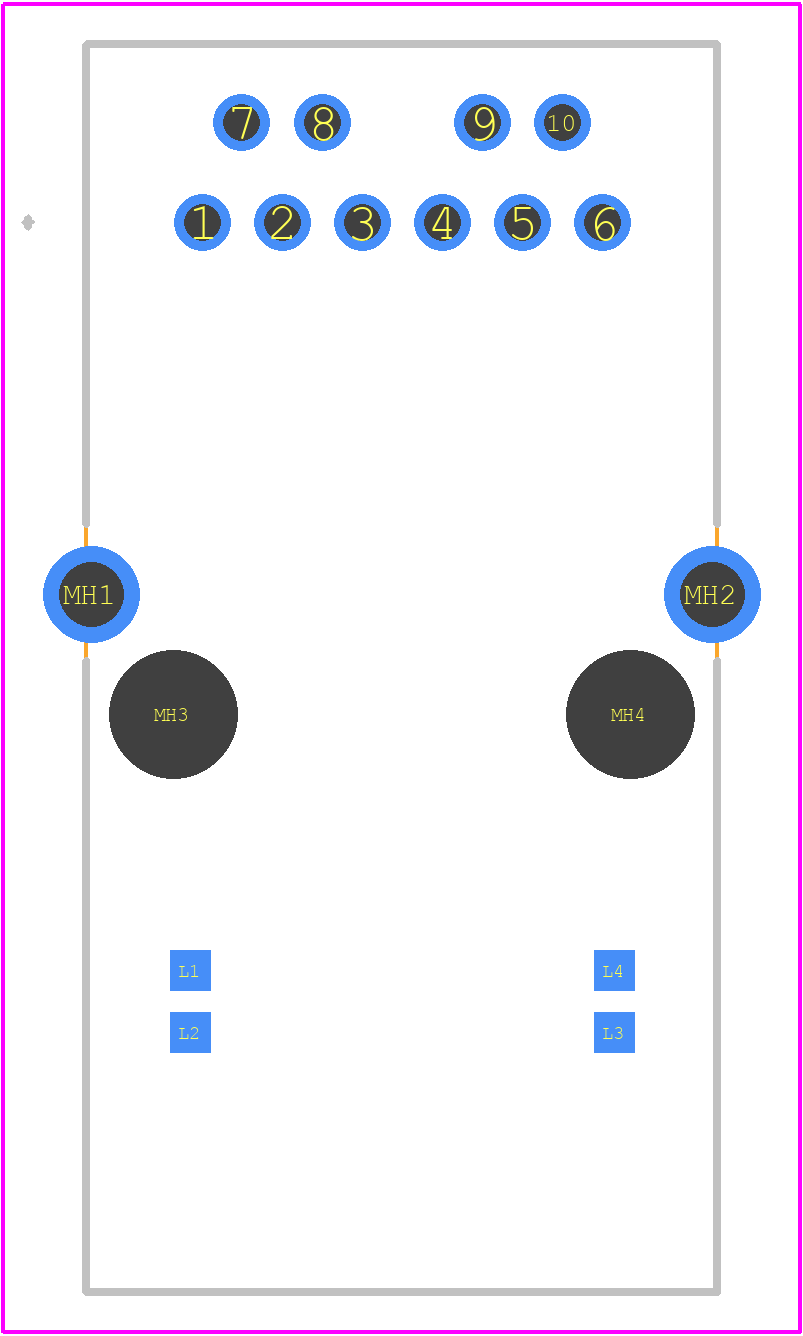

09455511151 - HARTING PCB footprint - Other - Other - 09455511151-6
click to zoom
3D Models
09455511151 - HARTING - 3D model - Other - 09455511151-6
click to zoom

09455511151 Details

  • Manufacturer Part Number:

    09455511151

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09455511151 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09455511151 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09455511151 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09455511151 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and other dynamic environments.
  • The maximum operating temperature of the 09455511151 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09455511151 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
