The operating temperature range of the 09455511530 connector is -40°C to 125°C, as per the IEC 61984 standard.
Yes, the 09455511530 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
Yes, the 09455511530 connector is designed to operate in harsh environments, with an IP67 rating for protection against dust and water ingress, and resistance to various chemicals, such as oil, fuel, and cleaning agents.
The mating cycle life of the 09455511530 connector is 500 cycles, as per the IEC 61984 standard, ensuring reliable connections over an extended period.
Yes, the 09455511530 connector is part of the HARTING Han series, which is a modular connector system, allowing for compatibility with other Han series connectors and accessories.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09455511530 Overview

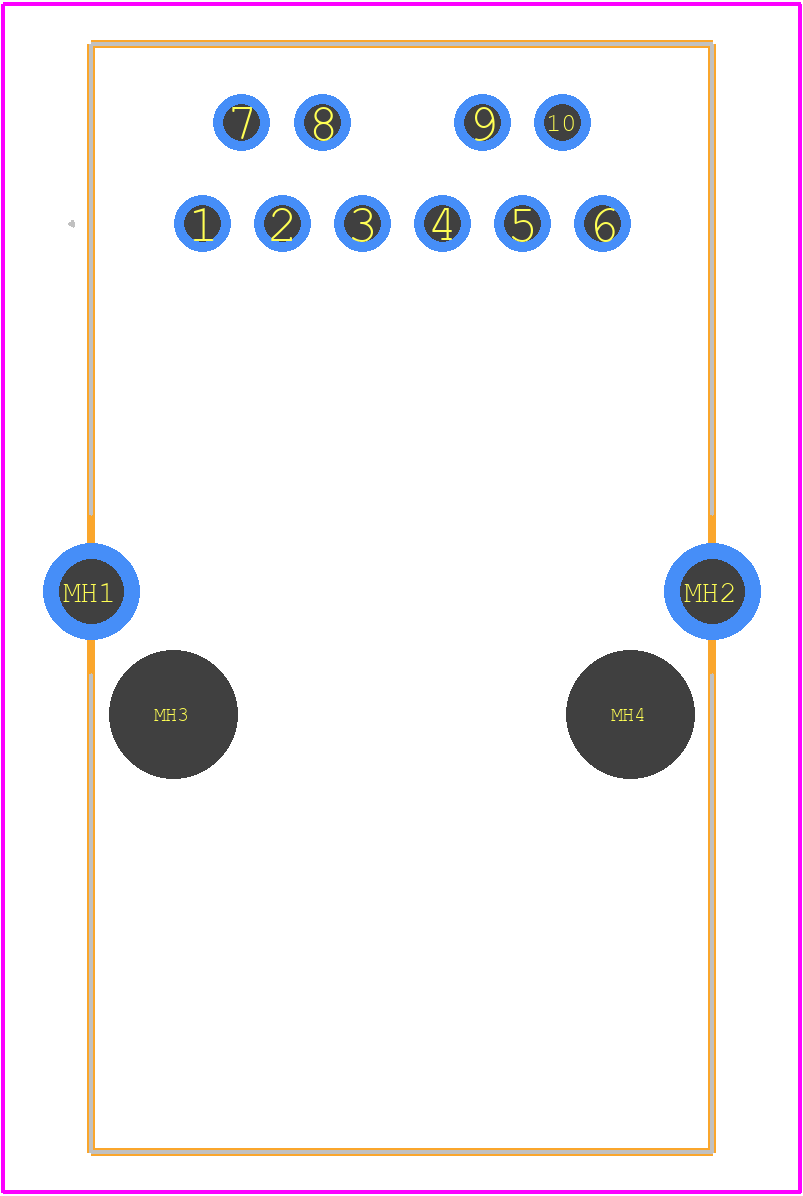

Use the download button to access the 09455511530 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09455,
or try a keyword search, such as Telecom and Datacom Connectors
