09465004402 - HARTING

Description: HARTING PushPull V4 Power 4/0 Insert, Female, straight pcb mount

Download 09465004402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09465004402 - HARTING - PCB symbol
click to zoom
PCB Footprints

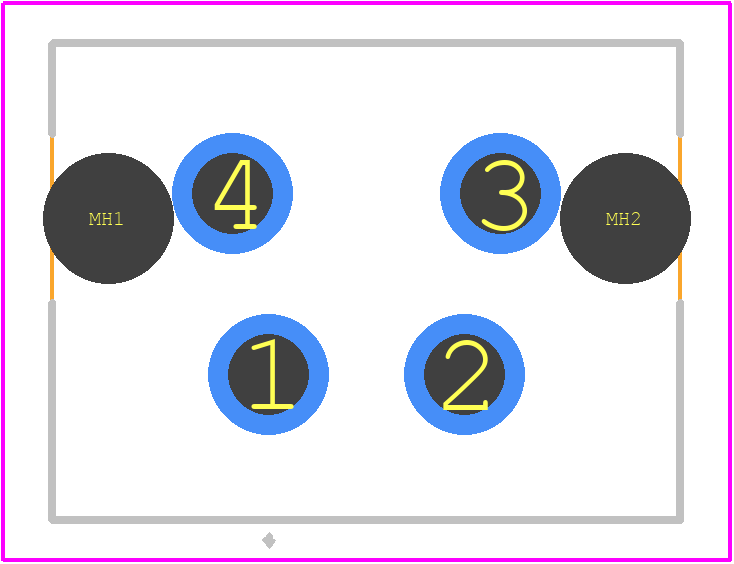

09465004402 - HARTING PCB footprint - Other - Other - 09465004402-4
click to zoom
3D Models
09465004402 - HARTING - 3D model - Other - 09465004402-4
click to zoom

09465004402 Details

  • Manufacturer Part Number:

    09465004402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09465004402 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09465004402 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09465004402 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09465004402 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the 09465004402 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09465004402 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09465004402 Overview

Use the download button to access the 09465004402 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09465, or try a keyword search, such as Telecom and Datacom Connectors
