0955032881 - Molex

Description: Modular Jack, Vertical, Top Entry, Through Hole, 8/8, No Key Version, Tray

Download 0955032881 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0955032881 - Molex - PCB symbol
click to zoom
PCB Footprints

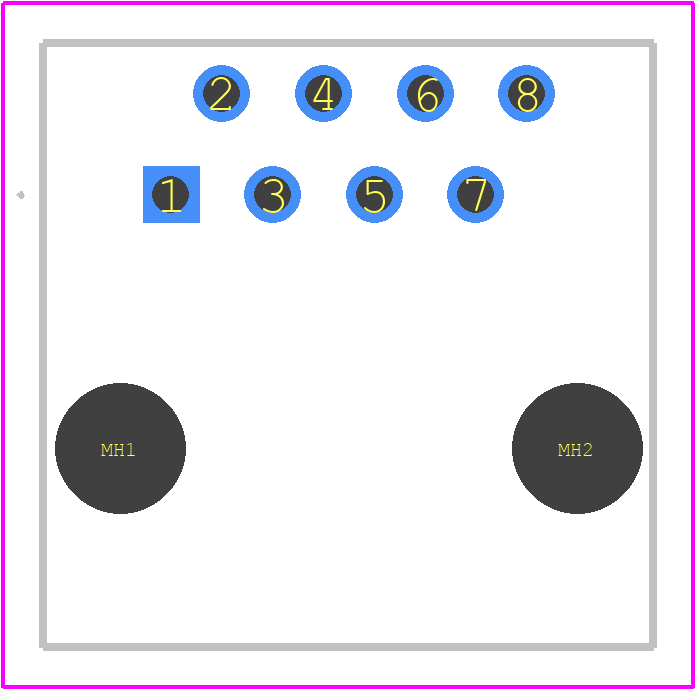

0955032881 - Molex PCB footprint - Other - Other - 0955032881-1
click to zoom
3D Models
0955032881 - Molex - 3D model - Other - 0955032881-1
click to zoom

0955032881 Details

  • Manufacturer Part Number:

    0955032881

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Ireland, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • JESD-609 Code:

    e3
