09722642801 - HARTING

Description: Connectors, Female connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 64, Angled, Copper alloy,.,. Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Download 09722642801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09722642801 - HARTING - PCB symbol
click to zoom
PCB Footprints

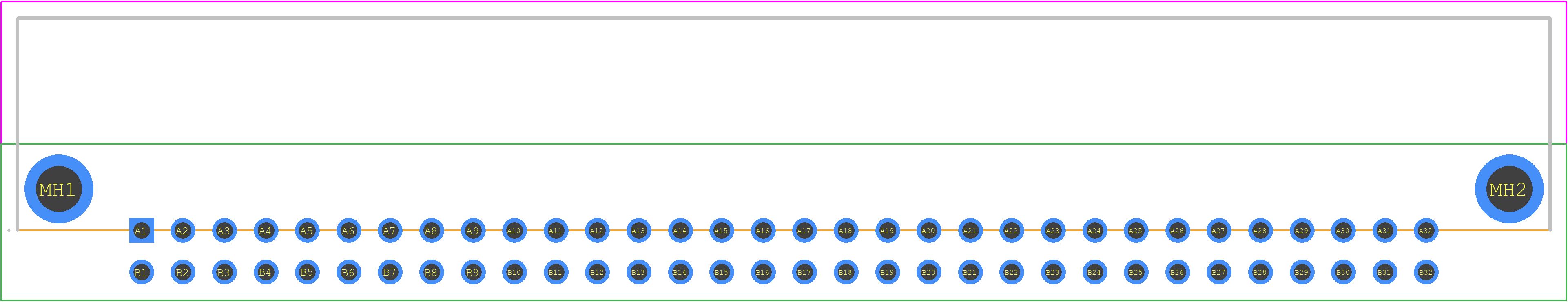

09722642801 - HARTING PCB footprint - Other - Other - 09722642801-1
click to zoom
3D Models
09722642801 - HARTING - 3D model - Other - 09722642801-1
click to zoom

09722642801 Details

  • Manufacturer Part Number:

    09722642801

  • Manufacturer:

    HARTING Technology Group

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09722642801 Overview

Use the download button to access the 09722642801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09722, or try a keyword search, such as Headers and Edge Type Connectors
