- Part Number 09722646801
- Manufacturer HARTING
- Pin Count 66
- Part Category Connector
- Package Category Other

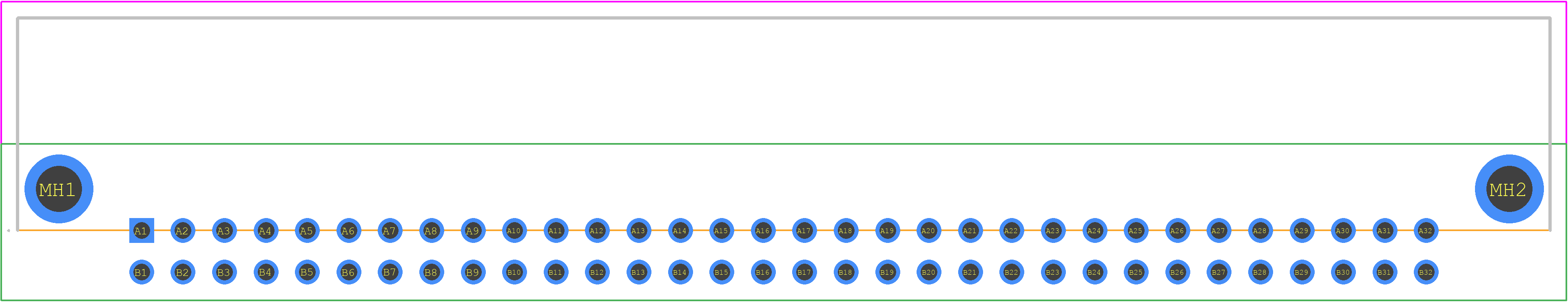

- Footprint Name Other - 09722642801-1
- Released Date Oct 29, 2021
- Last Modified Date Jul 26, 2024 11:43 AM UTC
- Pinout / Pin List Click Here (Member Only)
09722646801 Details
-
Manufacturer Part Number:
09722646801
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8
-
Additional Feature:
STANDARD: DIN 41612
-
Connector Type:
BOARD EURO CONNECTOR
