09722646804 - HARTING

Description: DIN Q female angled, 64pin, PL2, THR/SMC

Download 09722646804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09722646804 - HARTING - PCB symbol
click to zoom

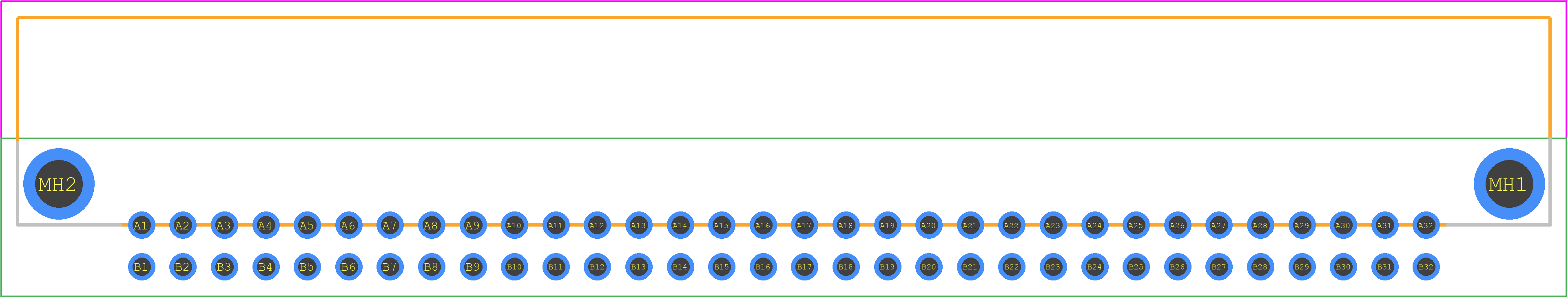

PCB Footprints
09722646804 - HARTING PCB footprint - Other - Other - 09722646804
click to zoom
3D Models
09722646804 - HARTING - 3D model - Other - 09722646804
click to zoom

09722646804 Details

  • Manufacturer Part Number:

    09722646804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09722646804 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09722646804 connector is designed for outdoor use and meets the IP67 rating, making it resistant to dust and water ingress.
  • Yes, the connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • The operating temperature range of the 09722646804 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09722646804 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating with other Han series connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09722646804 Overview

Use the download button to access the 09722646804 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09722, or try a keyword search, such as Headers and Edge Type Connectors
