The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 09731646947 connector is designed to meet the requirements of IEC 61984, which includes vibration and shock testing. However, it's crucial to consult the datasheet and HARTING's environmental testing documentation to ensure the connector meets the specific requirements of your application.
The 09731646947 connector is rated for operation in temperatures ranging from -40°C to +125°C. However, it's essential to consider the specific application, PCB material, and environmental factors that may affect the connector's performance and longevity.
The 09731646947 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's crucial to consult HARTING's environmental testing documentation and application notes to ensure the connector meets the specific requirements of your application, including exposure to chemicals or high humidity.
The 09731646947 connector is designed for use with standard FR4 PCB material with a thickness of 1.6 mm. However, HARTING may offer custom solutions or variations for different PCB materials or thicknesses. It's essential to consult their technical support or application notes for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09731646947 Overview

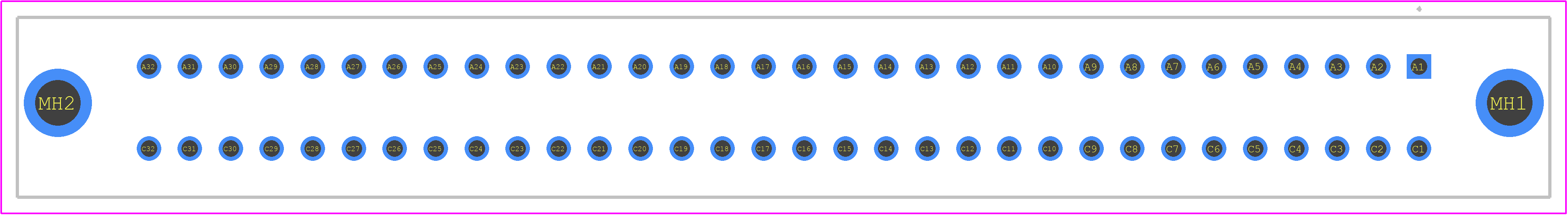

Use the download button to access the 09731646947 schematic symbol, PCB footprint, and 3D model.
