The operating temperature range for the 09731966903222 connector is -40°C to 125°C, as per the IEC 61984 standard.
Yes, the 09731966903222 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
The 09731966903222 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
Yes, the 09731966903222 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
Yes, the 09731966903222 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series products, allowing for easy integration and customization.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09731966903222 Overview

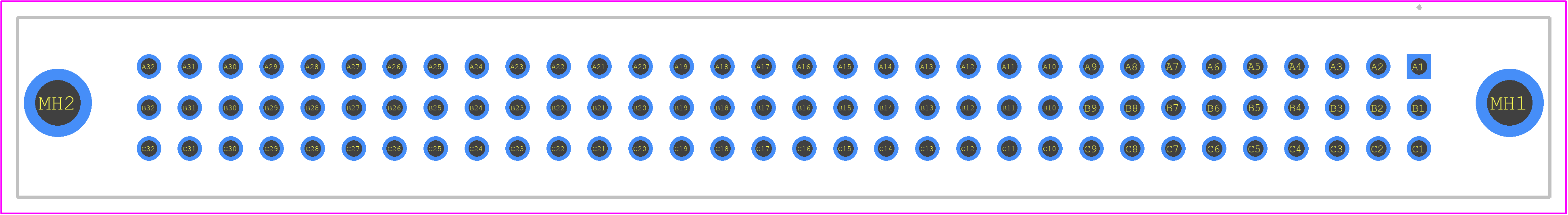

Use the download button to access the 09731966903222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09731,
or try a keyword search, such as Headers and Edge Type Connectors
