09731966974 - HARTING

Description: DIN R male straight 96pin, press-in 13mm tails, PL2 (posts PL3 Au)

Download 09731966974 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09731966974 - HARTING - PCB symbol
click to zoom
PCB Footprints

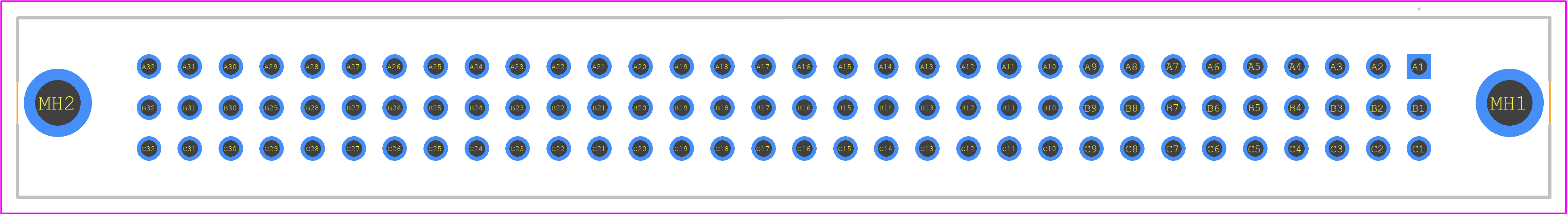

09731966974 - HARTING PCB footprint - Other - Other - 09731966974-1
click to zoom
3D Models
09731966974 - HARTING - 3D model - Other - 09731966974-1
click to zoom

09731966974 Details

  • Manufacturer Part Number:

    09731966974

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612 PANEL MOUTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09731966974 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09731966974 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the connector is 125°C, as specified in the datasheet.
  • Yes, the 09731966974 connector is part of the HARTING Han series and is compatible with other Han series connectors.
