09732322801 - HARTING

Description: DIN R female angled, 32pin, PL1 (rows a,c even columns loaded)

Download 09732322801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

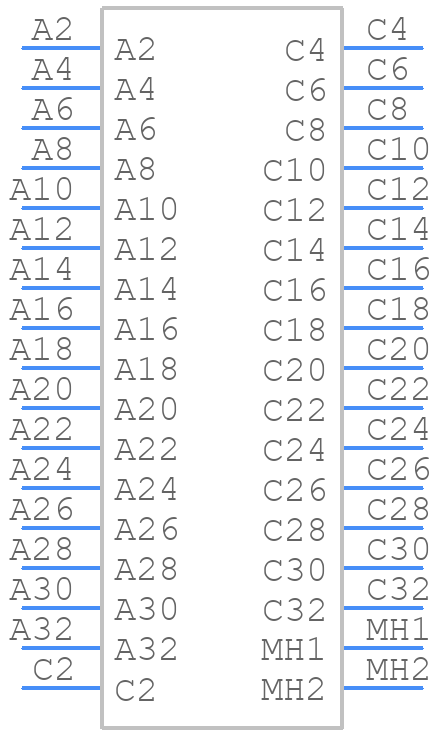

09732322801 - HARTING - PCB symbol
click to zoom
PCB Footprints

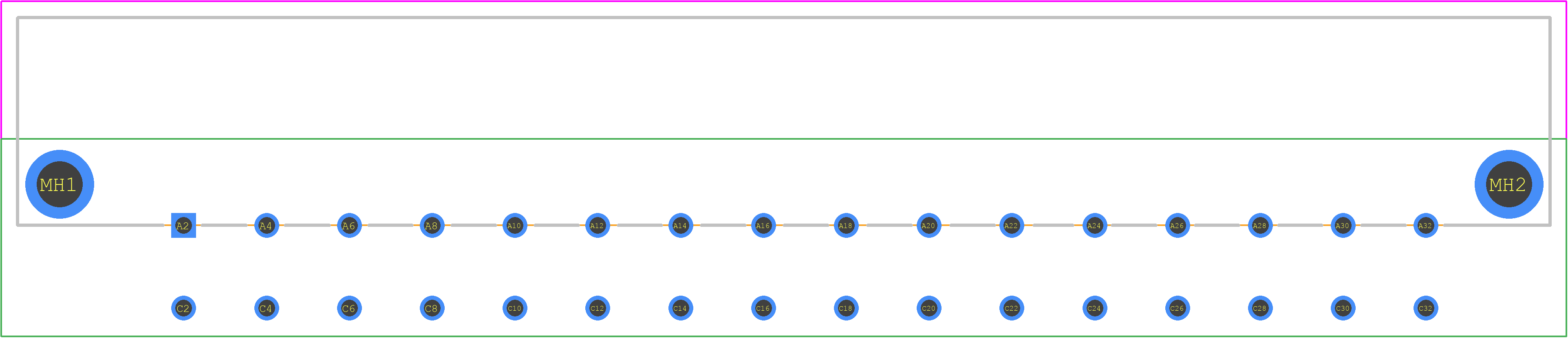

09732322801 - HARTING PCB footprint - Other - Other - 09732322801-1
click to zoom
3D Models
09732322801 - HARTING - 3D model - Other - 09732322801-1
click to zoom

09732322801 Details

  • Manufacturer Part Number:

    09732322801

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09732322801 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09732322801 connector is suitable for outdoor use, as it has an IP67 rating, which means it can withstand dust and water ingress.
  • Yes, the connector is designed to withstand high vibrations, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per IEC 61373 Cat. 2.
  • The operating temperature range of the 09732322801 connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 09732322801 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09732322801 Overview

Use the download button to access the 09732322801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09732, or try a keyword search, such as Headers and Edge Type Connectors
